67-5823-87 Mirror Holder Type: Mirror Holder Optical Element (mm): Φ54 MHJ-54
Product Description
Product Model: 67-5823-87Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 67-5823-87
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features

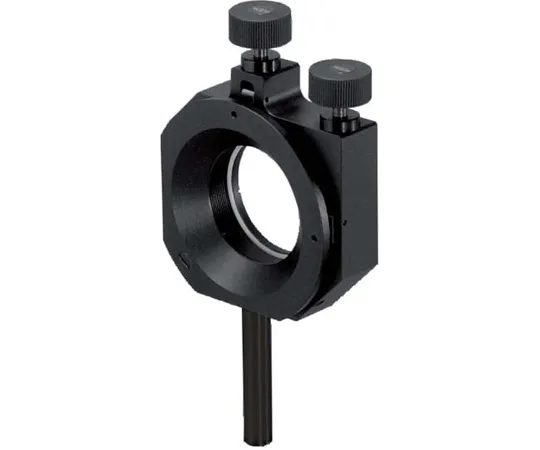

- The upper control type gimbal type mirror holder is a type of mirror holder that incorporates a circular mirror. It is a gimbal type with the surface of the mirror matching the center of rotation of the holder.
Spec
- Type: Mirror holder
- Optical element (mm): phi 54, thickness 2~13
- Effective diameter (mm): phi 50
- Soft Thread: M6P0.25
- Fine range of motion (degrees): +/- 3
- Shaft (mm): phi 12, length 60
- Mass (kg): 0.45
- A(mm):Φ54
- B(mm):Φ50
- C(mm):MAX.13
- D(mm):43
- E(mm):50
- F(mm):39
- G(mm):24
- H(mm):43
- I(mm):11.5
- J(mm):18
- K(mm):Φ12
- Type: Gimbal
