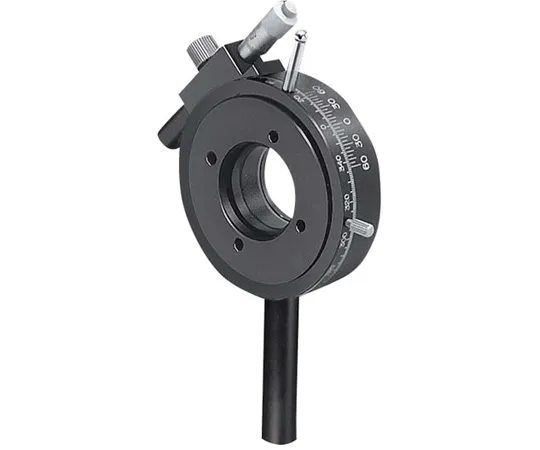

67-5823-85 Polarizing Element Holder Type: Polarizing Element Holder POH-30
Product Description
Product Model: 67-5823-85Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 67-5823-85
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features
- The polarizer and wavelength plate are fixed and ***d to adjust the polarization plane.
- Loosen the coarse clamp screw for 360° movement. Tighten the coarse clamp screw for fine adjustment with the micrometer head.
- Since the scale ring moves indep***ently, 0 point can be set at any angle position.
- For incorporating Gram-Thomson prisms, polarizing prisms, polarizing plates, small cameras, etc.
Spec
- Type: Polarizing element holder
- Applicable Size (mm): Φ30, t1~13
- Effective diameter (mm): phi 27
- Adjustment range (°): coarse motion 360, fine motion ±4
- Percent (′): Vernier Reading 5
- Holder Center Height (mm): 33.9
- Mounting shaft (mm): phi 12, length 60
- Mass (kg): 0.15
