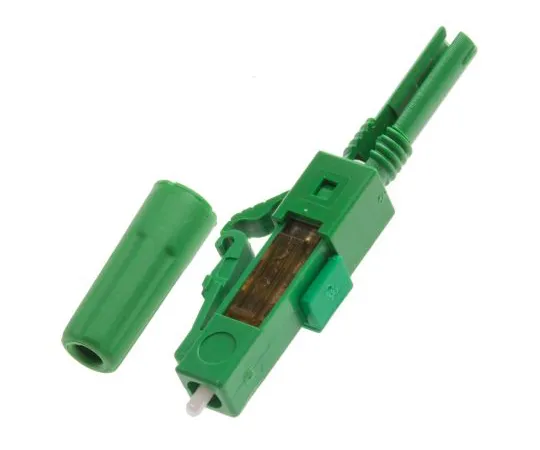

63-6790-81 RS PRO, LC, APC Single Mode Simplex Fibre Optic Connector 9/125μm Fibre Size, ≤ 0.4dB Insertion Loss 121-4205
Product Description
Product Model: 63-6790-81Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6790-81
Product Brand: RS PRO
Features
- RS Pro LC Single Mode Field Installable Connector
- The LC Field Installable Connector (FIC) series is delivered by the trusted RS Pro brand. This fiber optic connector is factory terminated and polished for fast and reliable connections. This excellent quality fiber connector eliminates the need for epoxy, polishing, and crimping, making it ideal for on-time applications. This single-mode simplex connector series has a fiber size of 9/125 and is available in both APC and PC polishing types. It also provides a window for testing with a visual fault locator.
- Features & Benefits: Ready-to-*** polished connectors with mechanical spliceSupports standard LC adapterEasy termination processesTime-saving, reliable optical performanceUse: Fibre To The Home (FTTH) optical network repair
Spec
- Series:LC
- Connector Type:LC
- Connector Polish:APC
- Single/Multimode:Single Mode
- Simplex/Duplex:Simplex
- Fibre Size:9/125µm
- Insertion Loss:≤ 0.4dB
- Buffer Diameter:2 mm
- Colour:Green
- CODE No.:121-4205
