Spec

• Module with 3 Axis Accelerometer H3LIWS331DL

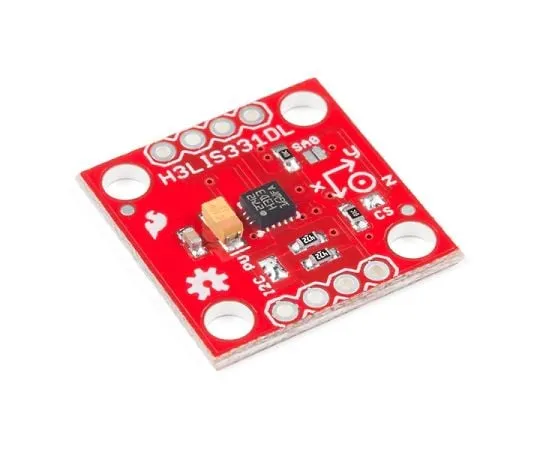

• Breakout board for the 3 axis accelerometer H3LIS331DL from STMicroelectronics. The H3LIS331DL is a low-power, high-G acceleration sensor with I2C and SPI interfaces. It is not suitable for detecting small changes, but it is ideal for severe conditions where normal accelerometers are not suitable. It has 10,000 g impact resistance and sleep capability, and can be ***d for shock/collision detection and logging.
• This breakout board can be switched between ±100 g/±200 g/±400 g, and the data rate can be adjusted from 0.5 kHz to 1 kHz. It normally operates at 2.16 V to 3.6 V, but has a low power mode I/O operating at 1.8 V.
• Get Started with the SparkFun H3LIS331DL Breakout Guide
• Specifications/Power supply voltage: 2.16 V~3.6 V
• Low voltage I/O: 1.8 V operation
• Ultra-low power consumption mode: 10 μA (min)
• Full scale: ±100 g/±200 g/±400 g dynamically selectable
• Interface: I2C, SPI
• 16 bit data output
• sleep wake-up function
• Impact resistance: 10,000 g
• [Reference]
• Schematic
• Eagle Files
• Hookup Guide
• Datasheet (H3LIS331DL)
• Code Library
• GitHub
