Spec

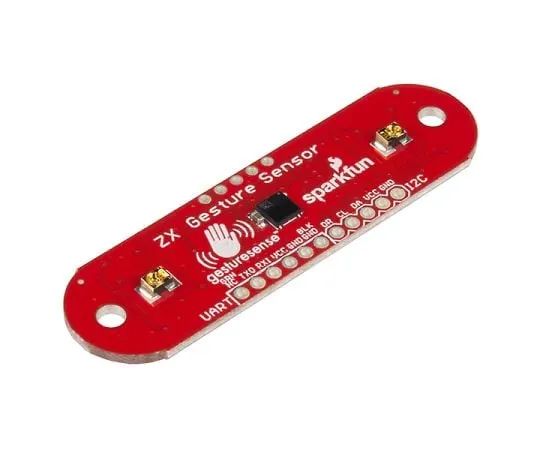

• Sensor board for detecting distance and movement of Z axis and X axis by infrared ray
• Developed in collaboration with XYZ Interactive, the ZX Distance & Gesture Sensor is a touchless sensor that can detect simple movements. It ***s GestureSense technology to recognize the position of objects up to approximately 30 cm (Z axis) away from the sensor and approximately 15 cm (X axis) across the sensor.
• Get started with the ZX Sensor Guide
• Specifications
• Power supply voltage: 3.3 V to 5 V
• Z axis recognition range: 30 cm (max)
• X axis recognition range: 15 cm (max)
• Implement four types of gesture commands
• Interface: I2C, UART
• [Reference]
• Schematic
• Eagle Files
• Hookup Guide
• XYZ I2C Register Map
• Datasheet
• Arduino Code
• GitHub
