63-6789-68 2 x 18V ac 2 Output PCB Mount PCB Transformer, 30VA 121-3857
Product Description
Product Model: 63-6789-68Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6789-68
Product Brand: RS PRO
Features

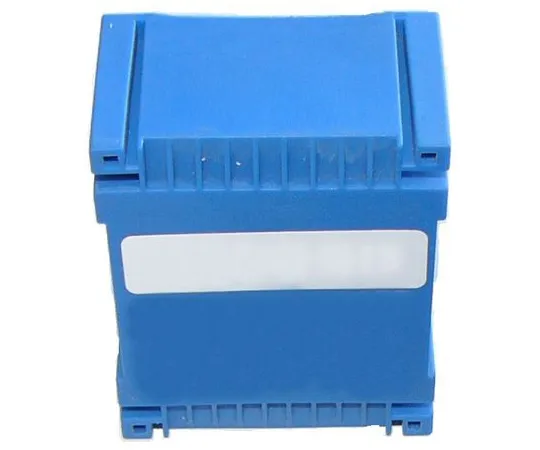

- RS Pro Substrate Low Profile Transformer The RS Pro Substrate Low Profile transformer is a low voltage transformer with twin 115 V ac 50/60 Hz primary windings. This board transformer is compact, low in height and has indep***ent secondary windings ideal for series/parallel connections, providing output voltage and current options. This transformer is 100% electrical/flash tested and provides two compartment bobbins, high efficiency/low temperature rise, low inter-winding capacity and low radiation noise.
Spec
- Secondary Voltage Rating:2 x 18V ac
- Power Rating:30VA
- Primary Voltage Rating:115 → 230V ac
- Number of Outputs:2
- Length:68mm
- Width:57mm
- Depth:35mm
- Dimensions:68 x 57 x 35mm
- Weight:530g
- Mounting Type:PCB Mount
- Maximum Temperature:+130°C
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:121-3857
