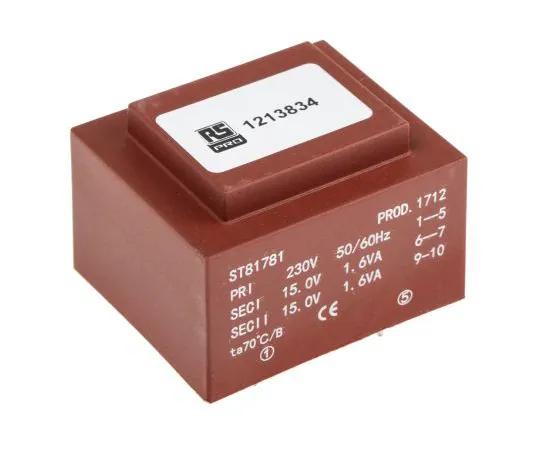

63-6789-51 2 x 15V ac 2 Output PCB Mount PCB Transformer, 3.2VA 121-3834
Product Description
Product Model: 63-6789-51Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6789-51
Product Brand: RS PRO
Features
- RS Pro Substrate Standard Trans The RS Pro substrate standard transformer is a low voltage main power transformer with a single 230 V ac 50/60 Hz primary winding. This transformer has secondary windings ideal for series/parallel connections and can provide a wide range of current options. 100% Electrical performance test/flash test completed. Double section bobbin, high efficiency, low temperature rise. This RS Pro transformer provides low interwinding capacity and low radiation noise.
Spec
- Secondary Voltage Rating:2 x 15V ac
- Power Rating:3.2VA
- Primary Voltage Rating:230V ac
- Number of Outputs:2
- Length:41mm
- Width:35mm
- Depth:28mm
- Dimensions:41 x 35 x 28mm
- Weight:150g
- Mounting Type:PCB Mount
- Maximum Temperature:+130°C
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:121-3834
