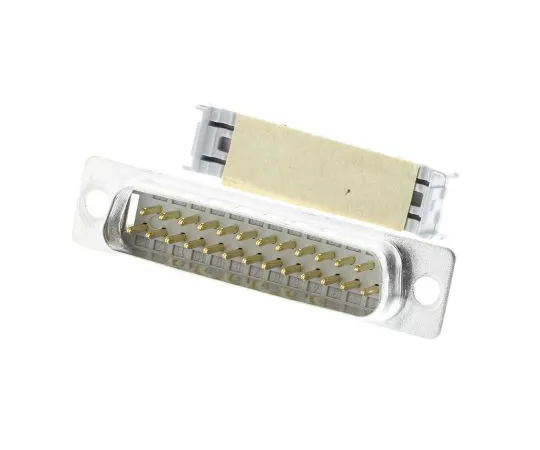

63-6787-69 IDC D-sub connector Plug 25 pole 8225-6009
Product Description
Product Model: 63-6787-69Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-6787-69
Product Brand: 3M Company
Features
- Part No. XXXX-XXX0 with O3.05 mm flange hole Part No. XXXX-XXX5 with #4-40 UNC thread flange Part No. XXXX-XXX9 with rivet crimped flange
- Class II D metal shell connector
- Class II compliant cable mounting D connector For superior ground tools with tin plating and dimpling, Part No.; 120-6962 120-6962 and; See 192-7748 192-7748 3M Color Cord Ribbon Cable (Part No.; 120-8485 120-8485) Connector Strain Relief Sold Separately (Part No.; 121-2822 121-2822)
Spec
- Number of pieces: 1
- Male and female: male
- Number of contacts: 25
- Body orientation: right angle
- Pitch: 2.76 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold on Nickel
- Housing Material: Steel
- Current rating: 1A
- Dimensions: 53.3 x 16.5 x 12.4 mm
- Series: 8200
- Depth: 12.4 mm
- Length: 53.3 mm
- Operating temperature Min: -55 degrees C
- RoHS compliance status: Compliance
- Securities Code: 121 0078
