63-6787-65 Ribbon cable 34 core shielded 30 m 3659-34
Electronic/Electrical Parts and Controll Equipments

63-6787-65 Ribbon cable 34 core shielded 30 m 3659-34

model: 63-6787-65
brand: 3M Company

Product Description

Product Model: 63-6787-65Product Brand: 3M Company Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6787-65
Product Brand: 3M Company

Features

  • UL Certified
  • These cables are not int***ed as power cables or cables for direct connection to the main power source of the equipment.

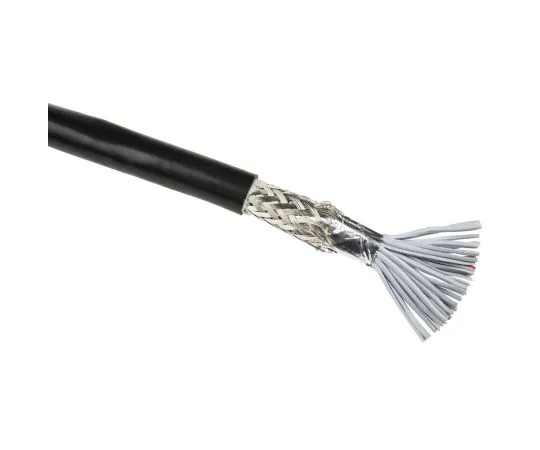

  • Shielded Round Type 1.27 mm Pitch Ribbon Cable - Type 3659
  • ・ Stranded Tin-plated Copper Conductor Insulated with Black PVC ・ Aluminized Polyester Tape and Tin-plated Copper Blade Allows Large Termination by Repeated Double Shielding, Splitting/Joining • UL AWM Standard 20267

Spec

  • Quantity: 1 reel (30 meters)
  • Number of poles: 34
  • Width: 41.9 mm
  • Pitch: 1.27 mm
  • Reel length: 30 m
  • Allowable Voltage: 300 V
  • Capacity: 90.88 pF/m
  • Characteristic Impedance: 106 ohms
  • Operating temperature Min: -20 degrees C
  • Operating temperature Max: + 80 degrees C
  • Sheath color: black
  • RoHS compliance status: Compliance
  • Securities Code: 120 -9135
