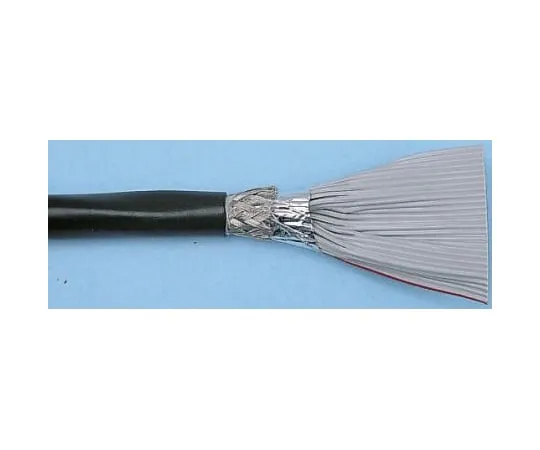

63-6787-64 Ribbon cable 26 core shielded 30 m 3659-26
Product Description
Product Model: 63-6787-64Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-6787-64
Product Brand: 3M Company
Features
- UL Certified
- These cables are not int***ed as power cables or cables for direct connection to the main power source of the equipment.
- Shielded Round Type 1.27 mm Pitch Ribbon Cable - Type 3659
- ・ Stranded Tin-plated Copper Conductor Insulated with Black PVC ・ Aluminized Polyester Tape and Tin-plated Copper Blade Allows Large Termination by Repeated Double Shielding, Splitting/Joining • UL AWM Standard 20267
Spec
- Quantity: 1 reel (30 meters)
- Number of poles: 26
- Width: 31.8 mm
- Pitch: 1.27 mm
- Reel length: 30 m
- Allowable Voltage: 300 V
- Capacity: 90.88 pF/m
- Characteristic Impedance: 106 ohms
- Operating temperature Min: -20 degrees C
- Operating temperature Max: + 80 degrees C
- Core Strand: 7/36
- RoHS compliance status: Compliance
- Securities Code: 120 -9129
