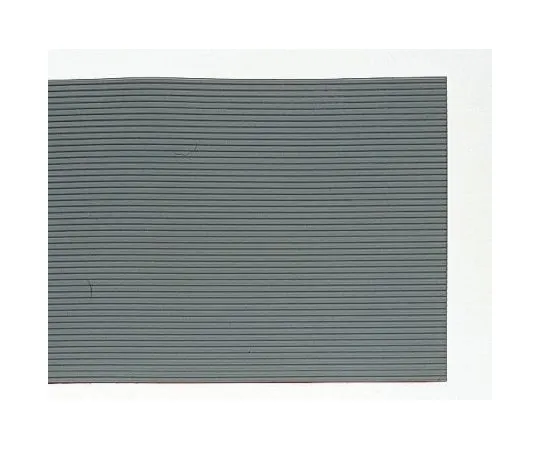

63-6787-49 FPC/FFC cable 25 wires Total length: 30 m 3365-25
Product Description
Product Model: 63-6787-49Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-6787-49
Product Brand: 3M Company
Features
- UL, CSA
- These cables are not int***ed as power cables or cables for direct connection to the main power source of the equipment.
- 0.05 ” (1.27 mm) Pitch Ribbon Cable - Type 3365
- 3365 Series Gray Ribbon Cable (28 awg wire with 0.05 ” center-to-center) for mass termination of a wide variety of 3M IDC connectors. Copper wire is more flexible than 7 x 36 tin plating, ext***ing product life. The first conductor is identified by a red edge
- Insulation resistance >1 x 10 10 Ω/3 m
Spec
- Quantity: 1 reel (30 meters)
- Number of poles: 25
- Pitch: 1.27 mm
- AWG American Wire Gauge Standard: 28
- Reel length: 30 m
- Width: 31.75 mm
- Cable shape: ribbon
- Sheath Color: Gray
- Allowable Voltage: 300 V
- Shielded/unshielded: unshielded
- Conductor Strand Type: Standard
- Number of strands: 7
- Operating temperature Min: -20 degrees C
- Operating temperature Max: + 105 degrees C
- Characteristic Impedance: 172 ohms
- RoHS compliance status: Compliance
- Securities Code: 120 -8097
