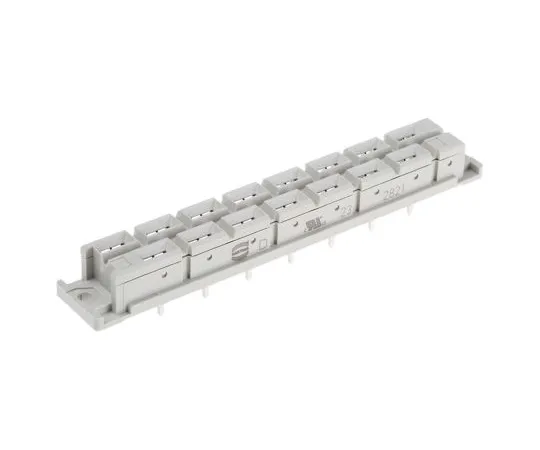

63-6786-06 DIN 41612 Connector Female 15 Pole 2 Row 10.16 mm pitch 09062152821
Product Description
Product Model: 63-6786-06Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-6786-06
Product Brand: HARTING
Features
- Harting DIN41612 Type H15 High Current Socket
- Harting DIN41612 Type H High Current Socket, High Current Backplane Socket is a DIN41612 Type H connector highly durable product suitable for many applications such as railway and power supply. Product number; 757-7986 757-7986 and; 757-7948 757-7948 is approved for railway applications under the Railway Classification NFF16-101, Smoke Index F1 and Flame Retardant Grade I2.
- The solder tail of the low profile connector is 4 mm. The cage clamp type supports 0.14 to 1.5 mm2 wires. The faston type osu blade is 6.3 x 0.8 mm.
Spec
- Quantity: 1 piece
- Number of contacts: 15
- Male and female: female
- Number of lines: 2
- Body orientation: Straight
- Terminal Method: Solder
- Loading column: z/d
- Type: H 15
- pitch: 10.16 mm
- Mounting type: through hole
- Class Rating: C1
- Rated current: 15 A
- RoHS compliance status: Compliance
- Securities Code: 117 -3294
