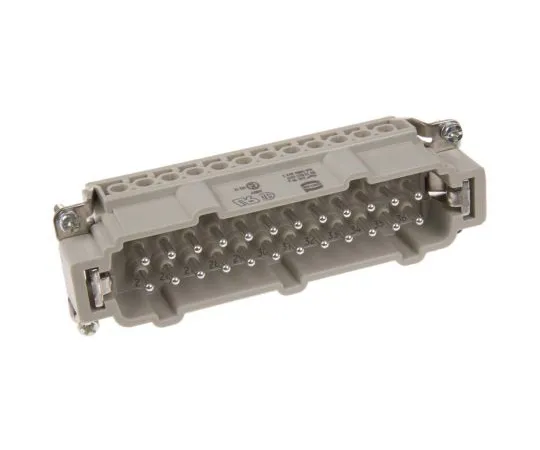

63-6785-26 Heavy Duty Connectors Han E Series Male 49 Pole 16 A 500 V 48 B 09330242611
Product Description
Product Model: 63-6785-26Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-6785-26
Product Brand: HARTING
Features
- These connectors cannot be engaged or unengaged under electrical load. If you place the same or different types of connectors on a row, be sure to polarize them to prevent incorrect connections.
- UL, CSA, SEV
- Han ER Insert
- Electrodes: 6-48 (Screw Connection Wire CSA 2.5 mm2) The 32 and 48 pole versions require 2 contact inserts per connector half. You will need a standard insert numbered "1 → 16" or "1 → 24" pole insert (m) or (f), and an insert numbered "17 → 32" or "25 → 48" insert (m) or (f). These are listed on the price list - e.g. 32P + E (17 32)
Spec
- Quantity: 1 piece
- Number of contacts: 49
- Type: Connector insert
- Rated current: 16 A
- Series: Han E
- Manufacturer size code: 48 B
- Rated voltage: 500 volts
- Male and female: male
- Number of lines: 2
- Body orientation: Straight
- RoHS compliance status: Compliance
- Securities Code: 114 -8412
