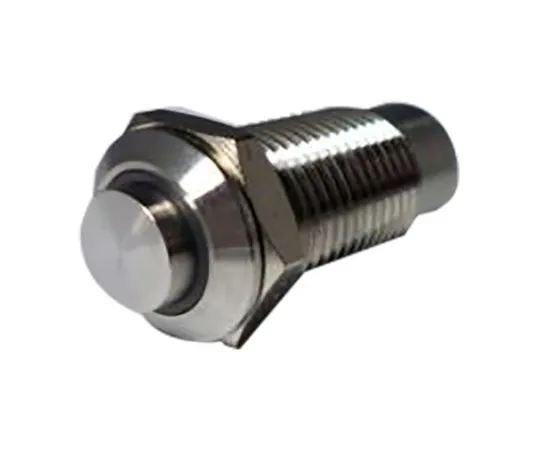

63-6780-25 RS PRO Single Pole Single Throw (SPST) Latching White LED Push Button Switch, IP65, IP67, 12 (Dia.)mm, Panel Mount, 111-6521
Product Description
Product Model: 63-6780-25Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6780-25
Product Brand: RS PRO
Features
- RS Pro Stainless Steel Push Button Switch - Convex Actuator • The RS Pro anti-bandal stainless steel switch offers cost-effective and durable panel mounting options for a wide range of applications. This product has LED rings in various colors for easy status display. This series of anti-bandal switches is highly durable for both indoor and outdoor harsh applications, as well as for public exposed installations.
- Features and Advantages A cost-effective product that does not compromise the premium structure. Equipped with LED rings of various colors of IP65 grade. Silver alloy contacts provide excellent conductivity. Designed for *** in harsh indoor and outdoor environments. Can be ***d in public places.
Spec
- Switch Operation:Latching
- Mounting Type:Panel Mount
- Illuminated:Yes
- Contact Configuration:Single Pole Single Throw (SPST)
- Panel Cut Out Size:12 (Dia.)mm
- Panel Cut Out Diameter:12mm
- LED Colour:White
- IP Rating:IP65, IP67
- Actuator Colour:Silver
- Voltage Rating:220V ac/dc
- Contact Current Rating:5 mA
- Actuator Shape:Round
- Terminal Type:Quick Connect
- Contact DC Voltage Rating:36V
- CODE No.:111-6521
