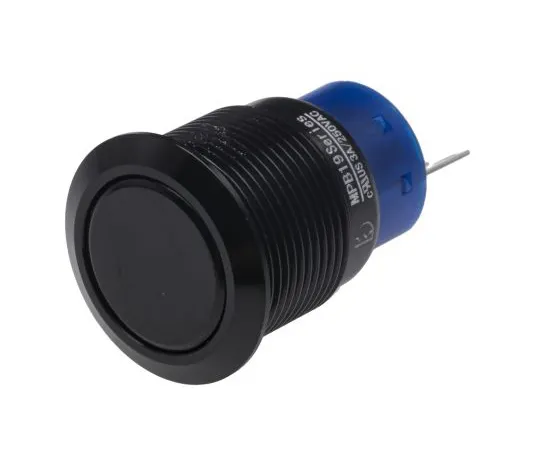

63-6778-14 RS PRO Single Pole Double Throw (SPDT) Latching Push Button Switch, IP67, 19.2 (Dia.)mm, Panel Mount, 250V ac 111-5834
Product Description
Product Model: 63-6778-14Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6778-14
Product Brand: RS PRO
Features
- RS Pro 19 mm Stainless Steel SPST Latch-Type Push Button
- Features and Benefits: IP67 Short length rating for space-constrained applications. Connect securely with silver plated copper contacts.
- Typical Applications
- Medical Device Industry Control Device Communication Device High-*** Hobby Switch
Spec
- Switch Operation:Latching
- Mounting Type:Panel Mount
- Contact Configuration:Single Pole Double Throw (SPDT)
- Panel Cut Out Size:19.2 (Dia.)mm
- Panel Cut Out Diameter:19.2mm
- IP Rating:IP67
- Voltage Rating:250V ac
- Contact Current Rating:5 A
- Actuator Shape:Round
- Terminal Type:Solder Pin
- Contact AC Voltage Rating:250V
- CODE No.:111-5834
