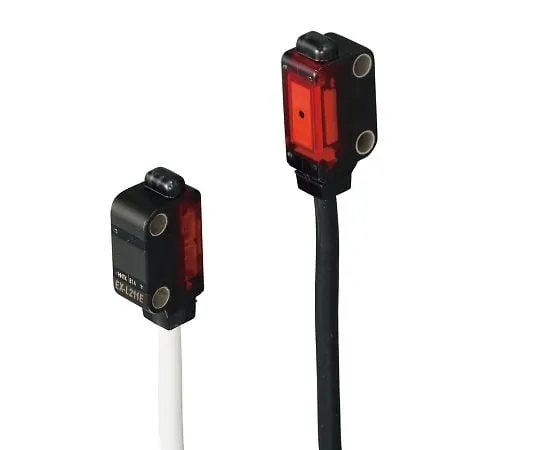

3-762-01 Micro Laser Sensor (Integrated Amplifier) EX-L211
Product Description
Product Model: 3-762-01Product Brand: Panasonic Corpora […]
Contact Us
Product Details
Product Model: 3-762-01
Product Brand: Panasonic Corporation
Spec
- Output: NPN output
- Specification: Transparent
- Type: Microbody Detection
- Power supply: DC 12 to 24 V ± 10%
- Output: Maximum input current/50 mA, applied voltage/26.4 V, residual voltage/2 V or less (Inflow current at 50 mA), 1 V or less (Inflow current at 16 mA)
- Response time: 0.5 ms or less
- Diff***r element: red semiconductor laser (Class 1 (JIS, TEC and FDA))
- Material: Case/PBT, front window/light receiving lens/acrylic, projection lens/glass, indicator lamp part/polyarylate
- Detection distance : 1 m
- Spot size (1m hr): approx. 6x4mm
- Maximum output of light emitting element: 390 μW
- Weight : about 40 g (light projector) , about 40 g (detector)
- Accessories: 2 mounting plates
