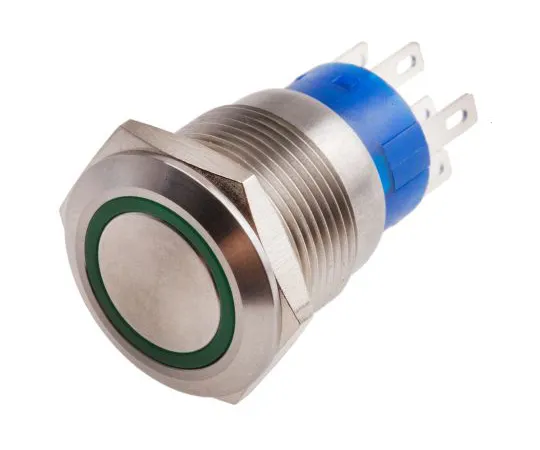

63-6777-71 RS PRO Double Pole Double Throw (DPDT) Momentary Green LED Push Button Switch, IP67, 19.2 (Dia.)mm, Panel Mount, 250V ac 111-5781
Product Description
Product Model: 63-6777-71Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6777-71
Product Brand: RS PRO
Features
- RS Pro 19 mm Stainless Steel DPDT Latch-Type Push Button
- Features and Advantages: IP67 Grade Not suitable for conventional switches due to its short length, can be ***d for space-limited applications. Securely connected with silver plated copper contacts
- Typical applications
- Medical equipment Industrial control equipment Communication equipment High-*** hobby switches
Spec
- Switch Operation:Momentary
- Mounting Type:Panel Mount
- Illuminated:Yes
- Contact Configuration:Double Pole Double Throw (DPDT)
- Panel Cut Out Size:19.2 (Dia.)mm
- Panel Cut Out Diameter:19.2mm
- LED Colour:Green
- IP Rating:IP67
- Actuator Colour:Silver
- Voltage Rating:250V ac
- Contact Current Rating:5 A
- Actuator Shape:Round
- Terminal Type:Solder Pin
- Contact AC Voltage Rating:250V
- CODE No.:111-5781
