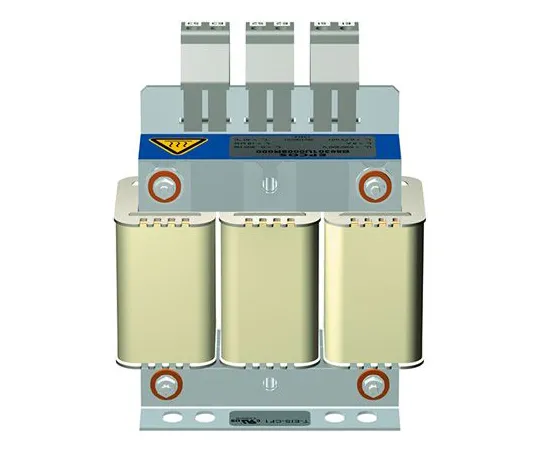

63-6776-67 EMC Filter (DV/DT Output Reactor) 3-Phase 12 A Chassis Mount 400 μH 1 Row 19 W 31 mΩ B86301U0012R000
Product Description
Product Model: 63-6776-67Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6776-67
Product Brand: EPCOS
Features
- T-EIS-CF1UL certified insulation system
- B86301U Series 3 Phase DV/DT Output Reactors
- The EPCOS B86301U series is optimized for motor cable and full load operation. These EMC filters are naturally cooled and have a three-phase dv/dt output reactor structure. The 8 A-24A option complies with IEC60076-6 and has an IP20 protection rating. The 45 A-112A series has an IP10 protection rating and the 180 A-1500A version has an IP00 protection rating. The B86301U output reactor is lightweight, compact and easy to install. These EMC filters reduce dv/dt and reduce voltage stress on the motor. Typical applications include frequency converters for motor drives ***d in traction/conveyor systems, HVAC systems, pumps, and elevators.
Spec
- Quantity: 1 Piece
- Maximum rated current: 12 A
- Maximum rated voltage: 520 V ac
- mounting type: chassis mount
- *** styles: terminal blocks
- Phase: 3
- Series: B86301U
- Clockspeed: 50/60Hz
- Length: 125 mm
- Depth: 80 mm
- Height: 140 mm
- Inductance: 400 microH
- Operating temperature Min: -25°C
- Operating temperature Max: +100°C
- Resistance: 31 mΩ
- Power loss: 19 W
- RoHS compliance status: Compliance
- Securities Code: 111-5331
