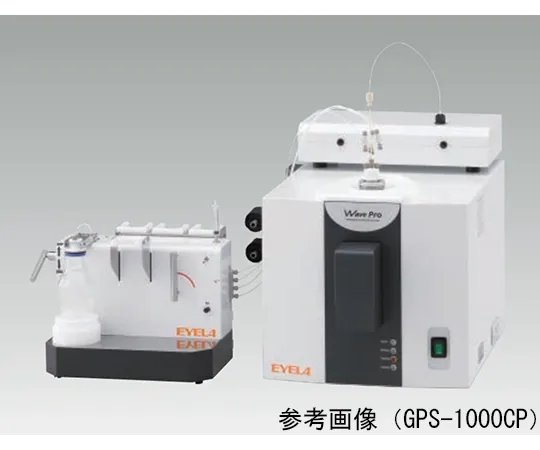

65-0579-20 Microwave peptide solid-phase synthesizer WavePro GPS-1000P
Product Description
Product Model: 65-0579-20Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0579-20
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Low-Temperature Microwave-Irradiated Glycopeptide Synthesizer
- Non-natural type, for suppressing side reactions of glycopeptide synthesis and for highly efficient synthesis
- A new temperature control technology (PAT) that promotes peptide solid-phase synthesis reactions while preventing the pyrolysis of reagents under low-temperature conditions, using technology that maximizes the *** of microwaves at low temperatures. This glycopeptide synthesizer (PAT) is capable of synthesizing glycopeptides in the solid phase, which has been difficult to synthesize.
- By continuously irradiating microwave traveling waves while cooling at a low temperature in an aluminum block thermostatic bath, the unique effect of microwaves can be obtained at low temperatures below 25°C. Glycopeptide synthesis using non-natural amino acids and sugar amino acids is possible while suppressing side reactions.
- The unique effects of microwave irradiation at low temperatures can reduce the amount of reagents required for peptide synthesis.
- It is an easy-to-*** and versatile device. Various peptide syntheses can be easily performed manually, reducing the time and labor required to synthesize long peptides and glycopeptides. Solid-phase synthesis (Fmoc) can be performed.
- The solid state reaction vessel is made of polypropylene and is ***d for synthesis of 1 mL scale. Optional 5 mL and 10 mL scales are also available.
- Equipped with an optical fiber temperature sensor, the solvent temperature is controlled below 25°C by precise adjustment of the microwave output (1~100 W continuous wave).
- Collection containers can be collected in glass bottles or centrifuge tubes.
- When using the GPS type, you need to submit an application for permission to *** high-frequency equipment to the Ministry of Internal Affairs and Communications.
Spec
- Microwave irradiation system: Single-mode traveling wave (continuous wave)
- Performance:
- Reaction method: Peptide solid-phase synthesis (Fmoc method only)
- Synthetic scale: 0.5 ~ 1 mL (Options: 1 ~ 5 mL, 5 ~ 10 mL)
- Stirring method: Inert gas bubbling
- Temperature control range: - 13 ~ 50 C (aluminum block thermostat)
- Output control range: 0 W, 1 ~ 100 W
- Features:
- Control: Laptop (included)
- Program: constant value operation, 1 step, 2 steps, auto stop
- reports: automatic reporting (PDF files)
- Valve operation: "Reaction mode" and "Washing mode" with switching valve, bubbling adjustment function
- Safety features: Leakage/overcurrent breaker, alarm (Oscillator reflection wave upper limit, oscillator temperature upper limit, reactor temperature upper limit, jacket temperature upper limit, microwave leakage, sensor disconnection, pressure upper limit, motor overload protection, temperature overrise prevention, communication alarm)
- Standard:
- Oscillation frequency and output power: 2.45 GHz and 100 W (Single-mode TE 10, semiconductor oscillator)
- Sensor: Optical fiber sensor (with PYREX protective tube)
- Operating ambient temperature range: 15 ~ 28 degrees C
- External dimensions (mm): 380 (460) W x 498 D x 442 H
- Mass: About 45 kg
- Power input/voltage: 11 A/100 VAC 50/60 Hz
- Configuration:
- phi 11 solid-state reaction vessel set: GPS -11 PP Type Product Code No. 278100
- Peptide Solid-Phase Synthesis Unit: GPS -10 SPPS Type Product Code No. 278090
- Optical fiber thermometer: GPS -10 FB-CE Type Product Code No. 274610
- Microwave reactor: GPS Type -1000 Product Code No. 271910
- *Scale-up synthesis is possible with the additional purchase of an optional solid-state reaction vessel set.
- *Cooling requires a separate cooling water circulator CCA -1112 A, cold insulated hose set CT -1 S, and knife line ® (4 kg).
- *This applies to high-frequency facilities. Application for permission to *** radiofrequency facilities is required.
- *A nitrogen gas cylinder is required separately.
- *Dimensions in parentheses include projections.
- *This device is supported by AMED issue number JP 18 ae0101031.
- Code: 278240
