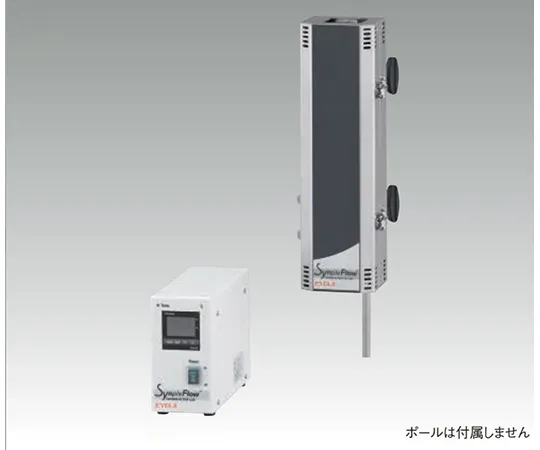

65-0578-70 Columnar Flow Reactor Simple Flow LCR-1300
Product Description
Product Model: 65-0578-70Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0578-70
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- For the development and examination of continuous production processes. From condition optimization to multi-step reactions with multiple linkages.
- This column type flow reactor is ideal for the development and examination of reaction processes for continuous production. Since the thermostatic bath is compatible with a 300 mm column, basic considerations for practical application can be made, such as optimization of reaction conditions, verification of continuous processing capability, and confirmation of catalyst durability. In addition, several thermostatic tanks can be connected for continuous reaction studies of multiple synthesis processes.
- The length of the thermostatic bath has been extended to 300 mm, and a column with an internal diameter of 10×300 mm can also be used. Ideal for research for practical application such as optimization tests and continuous processing capability verification.
- The column can be hand-packed with any immobilized catalyst. The inner diameter of the column is 10 x 300 mm, and also 5, 10 x 50, 100 mm. It also supports initial flow studies such as catalyst and reaction conditions search.
- The aluminum block is equipped with a sample solution preheating function.
- The thermostatic bath can be attached to the angle of the laboratory table.
- A recorder output terminal is provided as standard for managing and recording experimental data, and an alarm input/output terminal is provided for monitoring in the event of an error.
Spec
- Reaction type: Flow type (with separate liquid pump)
- Reaction vessel: Column type reaction vessel (stainless steel)
- Corresponding column sizes: inner diameter 5 x length 50 and 100 mm, inner diameter 10 x length 50, 100 and 300 mm
- Maximum working pressure: less than 1 MPa
- Temperature control range: 50 ~ 200 degrees Celsius (aluminum block temperature)
- Features:
- Temperature control: aluminum block jacket control, heating P.I.D control
- Sample inlet (optional): 1 port Column end: 1 system of solution, 2 ports for gas and liquid Column end: 1 system of gas and 1 system of solution, Multi-column end: 3 total systems of solution and gas
- External I/O: Temperature regulator PV value output (0 ~ 5 VDC), alarm contact output, alarm contact input
- Safety functions: Temperature controller self-diagnosis function (variable upper limit temperature/sensor error), independent overrise detector (temperature fuse), fuse
- Standard:
- Wetted part material: SUS 316, FFKM, PTFE, PEEK
- Connection Piping and Connection Screw Standards: Outside diameter 1/16 "tube (standard), outside diameter 1/8" tube (optional) No. 1/4 -28 UNF
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm): Constant temperature bath: 100 W x 90 D x 350 H (240 D: with arbor), temperature controller: 80 W x 220 D x 151 H
- Power input/voltage: 6.3 A, 630 VA/AC 100 V 50/60 Hz
- *No columns are included. You will need an optional column set, as well as a column end (U).
- *External dimensions do not include projections.
- Code: 276200
