Features

• Glow Wire Compatible (IEC60695-2-11 Compatible)

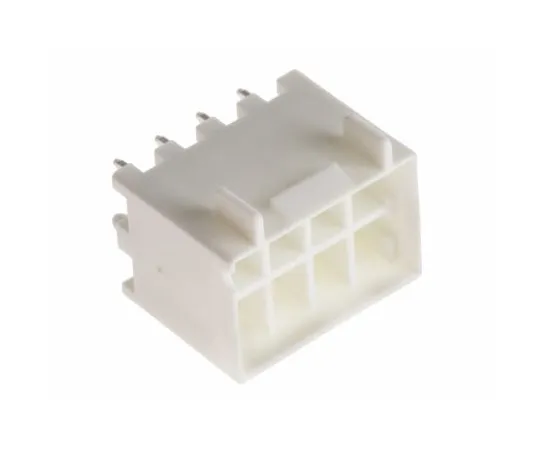

• Hirose Electric EnerBee DF33C Series 3.3 mm PCB Header Connector
• The DF33C Series 3.3 mm Wire-to-Board Small Power Supply Header Connector is the smallest connector in the EnerBee product.　The current capacity is up to 5 A when using 20 AWG wire.　The header housing has a robust positive locking mechanism designed to prevent accidental release of the engagement from drops or external impacts.　When engaged, a firm click is clearly felt to indicate that the connector is fully inserted, ensuring a secure electrical and mechanical connection.　This positive locking mechanism also meets various requirements for industrial internal and external power supplies.　The connector contacts are separated from each other by walls in the housing to prevent short circuits.　The guide post on the header connector allows the connector to be inserted in the correct position on the board and in the correct orientation. The material in the header housing contains fiberglass resin, which reduces thermal shrinkage and prevents solder cracking.　The header connector can be resin-filled up to 6.5 mm above the substrate surface without affecting performance.　This prevents moisture and foreign matter from entering.
• Features and Advantages: Small design, yet can handle a high current of 5 Am. solid click and reliable positive locking mechanism Individual "boxed" contacts prevent short circuits. can be filled with resin to protect against moisture and foreign matter. Up to 6.5 mm high glass fiber resin housing material prevents solder cracking. Supports creeping distance of 1.5 mm specified in Electrical Appliances and Materials Safety Law. Supports glow wire.
• Application: The Enerbee DF33C connector is widely used as a small connector for internal power supplies.　Major applications: LED lighting, office equipment, medical equipment, robots, home appliances, industrial control equipment, smart meters, home IT equipment, etc.
• EnerBee brand
• The name "EnerBee" is inspired by a small but energetic bee, and expresses the concept of "compact high performance."　EnerBee product connectors offer advanced connectivity solutions for a wide range of applications and can handle high current and high voltage.　Its small size maximizes space savings and makes it an excellent replacement for other bulky components on the market.　Replacing terminal locks with EnerBee's built-in locking mechanism improves assembly quality and efficiency.
