Features

• Glow Wire Compatible (IEC60695-2-11 Compatible)

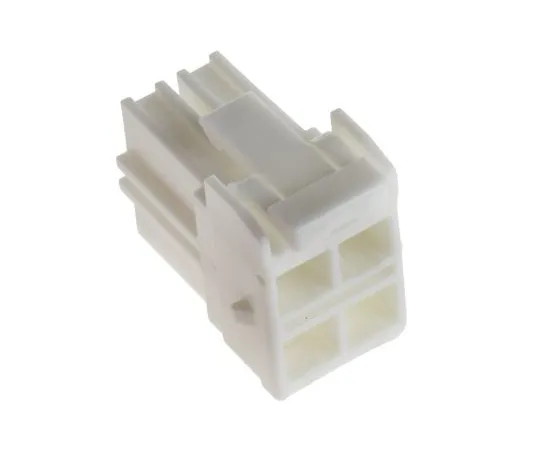

• Hirose Electric EnerBee DF33C Series 3.3 mm PCB Crimp Socket Housing
• The DF33C Series 3.3 mm Wire-to-Board Crimp Socket Connector Housing for Small Power Supplies is for the smallest connector in the EnerBee product.　The current capacity is up to 5 A when using 20 AWG wire.　The socket housing has a robust positive locking mechanism designed to prevent accidental engagement from falling or external impact.　When engaged, a firm click is clearly felt to indicate that the connector is fully inserted, ensuring a secure electrical and mechanical connection.　This positive locking mechanism also meets various requirements for industrial internal and external power supplies.　The crimp socket contacts are separated from each other by walls in the housing to prevent short circuits.　The housing has a two-point spring contact structure for stable connection.　The two contacts prevent the contact from oscillating under high vibration and causing fretting corrosion.　Contact for housing is sold separately.　The crimp socket housing can be used in conjunction with a contact retainer to ensure steady insertion of contacts.
• Features and Advantages: Small, space-saving design, yet capable of high current of 5 Am. solid click and reliable positive locking mechanism Individual "boxed" contacts prevent short circuits. stable connections prevent fretting corrosions. contact tainer incl. Glow wire support
• Application: The Enerbee DF33C connector is widely used as a small connector for internal power supplies.　Major applications: LED lighting, office equipment, medical equipment, robots, home appliances, industrial control equipment, smart meters, home IT equipment, etc.
• EnerBee brand
• The name "EnerBee" is inspired by a small but energetic bee, and expresses the concept of "compact high performance."　EnerBee product connectors offer advanced connectivity solutions for a wide range of applications and can handle high current and high voltage.　Its small size maximizes space savings and makes it an excellent replacement for other bulky components on the market.　Replacing terminal locks with EnerBee's built-in locking mechanism improves assembly quality and efficiency.
