Spec

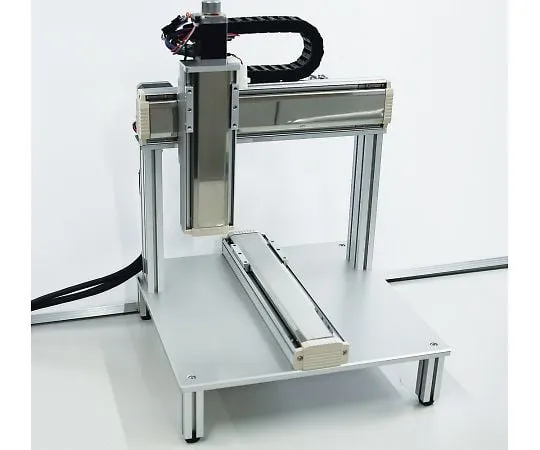

• Specification: 3-axis robot (with 5-phase stepping motor)
• Operating range (X/Y/Z Axis): 150/150/100mm
• Drive method (X/Y/Z Axis): Timing belt/Timing belt/Sliding screw lead 2mm
• Repeated positioning accuracy (X/Y/Z Axis):. ±0.05 /. ±0.05 /. ±Z 0.02mm
• Maximum capacity (X/Y/Z Axis): 4 kg
• External dimensions : 300 x 300 x 450mm
• Weight : about 8 kg (Include a stepping motor)
