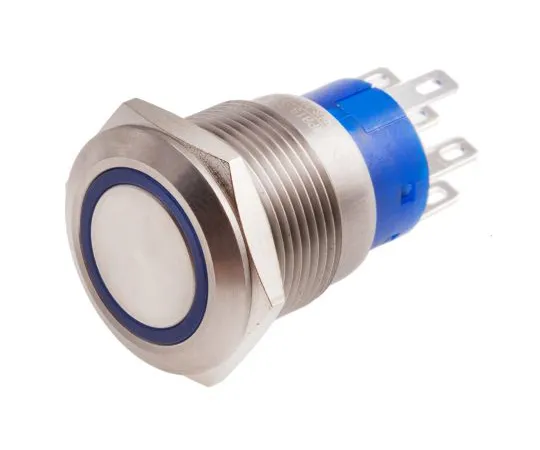

63-6775-11 RS PRO Double Pole Double Throw (DPDT) Momentary Blue LED Push Button Switch, IP67, 19.2 (Dia.)mm, Panel Mount, 250V ac 111-3775
Product Description
Product Model: 63-6775-11Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6775-11
Product Brand: RS PRO
Features
- RS Pro 19 mm Stainless Steel DPDT Momentary Push Button
- Features and Benefits: IP67 Short length rating for space-constrained applications. Connect securely with silver plated copper contacts.
- Typical Applications
- Medical Device Industry Control Device Communication Device High-*** Hobby Switch
Spec
- Switch Operation:Momentary
- Mounting Type:Panel Mount
- Illuminated:Yes
- Contact Configuration:Double Pole Double Throw (DPDT)
- Panel Cut Out Size:19.2 (Dia.)mm
- Panel Cut Out Diameter:19.2mm
- LED Colour:Blue
- IP Rating:IP67
- Actuator Colour:Silver
- Voltage Rating:250V ac
- Contact Current Rating:5 A
- Actuator Shape:Round
- Terminal Type:Solder Pin
- Actuator Type:Flat
- CODE No.:111-3775
