Features

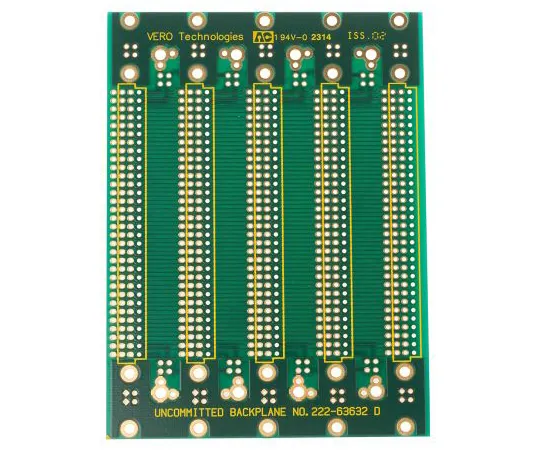

• Both sides, unassigned motherboard
• Vdc or ground position can be flexibly determined.　Four voltage lines are provided.　There is an option to connect the power supply using 6.3 mm terminal type FASTON or M3 screws.　Connectors of various widths and pitch intervals are available.　To minimize crosstalk between columns a and c, column b can be ***d as a 0V reserve line. Contacts 1, 2, 31, and 32 are assigned at 2.54 mm pitch intervals. Other contacts are assigned by wiring or wrapping. Columns a, b, and c can be connected using strap connectors (designed to connect to DIN connector pins).　To prevent the formation of solder bridges, this board has high quality varnished metal foil laminate holes.
