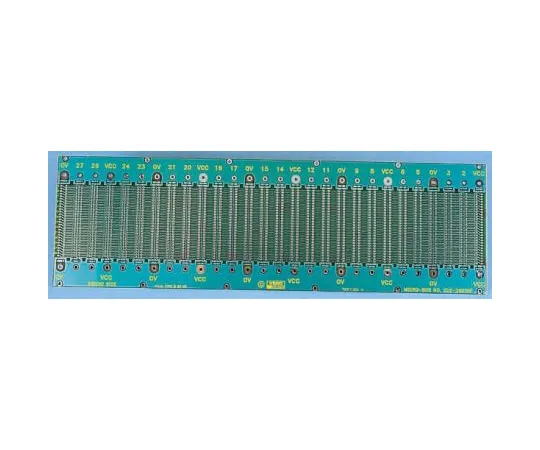

63-6763-31 64, 96 Way DIN 41612 Eurocard Motherboard FR4 Single Sided 84hp 20.32mm(4HP) 110-2444
Product Description
Product Model: 63-6763-31Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6763-31
Product Brand: RS PRO
Features
- Microbus with Earth Plane
- This Microbus can be ***d with DIN41612 64// 96 or 96// 96 connectors. Pins 1 and 32 in columns a and l are for 0 V with a 0 V display panel on one side of the plate. Pins 2 and 31 in columns a and c are for V dc. Therefore, 56 indep***ent signal lines are cleared. The width of the plate is 42 ~ 84 E. Female 64// 96 and 96// 96 Soldering or lap connectors are sold separately. High reliability due to metal holes. Minimal crosstalk. Compatible with DIN41494 (KM6-II). A protective lacquer that prevents solder bridges.
Spec
- Connection:DIN 41612
- Number of Contacts:64, 96
- Base Material:Epoxy Glass Fabric Laminate
- Number of Sides:1
- Height:128.6mm
- Horizontal Pitch:84HP
- Thickness:1.6mm
- Pitch:20.32mm
- Copper Thickness:35µm
- CODE No.:110-2444
