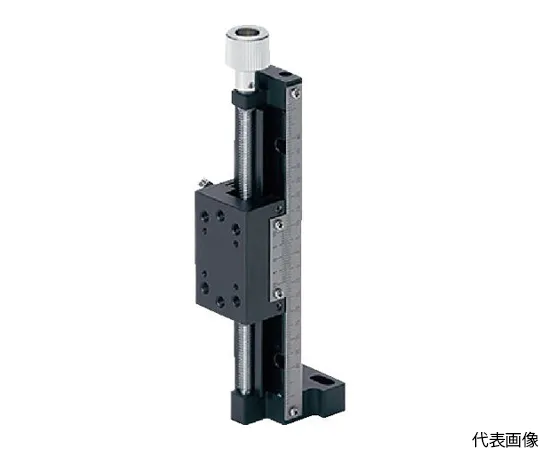

64-8786-34 Multi-function Screw Feed Stage Z-axis ZTSC-120-2
Analyzer, Testing Equipment

64-8786-34 Multi-function Screw Feed Stage Z-axis ZTSC-120-2

model: 64-8786-34
brand: MIRUC OPTICAL

Product Description

Product Model: 64-8786-34Product Brand: MIRUC OPTICAL F […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-8786-34
Product Brand: MIRUC OPTICAL

Features

  • An innovative feed screw type stage that allows you to select the amount of movement of 1 rotation of the handle from 2 mm, 5 mm, and 10 mm, respectively, according to the application.
  • Adopts a color scale with a center division that is easy to see visually.
  • The scale and clamp lever can be recombined left and right.

Spec

  • Stage surface (mm): 25 x 40
  • Displacement (mm): +/- 42
  • Handle rotation amount (mm): 2
  • Movement Precision Straightness (μm): 30
  • Movement Precision Parallelism (μm): 30
  • Load Capacity x Axis (N): 3
  • Load capacity Z axis (N): 1.5
  • Graduation Minimum Reading (mm): 0.1
  • screw type
  • Graduation Minimum Reading: 0.1 mm
  • Material/Finish: Stage Body: Made of Aluminum Alloy, Surface Treatment: Pearskin Black Alumite
  • Country of origin: Japan
  • Securities Code: 208 -1560

*This product might require extra fees.
