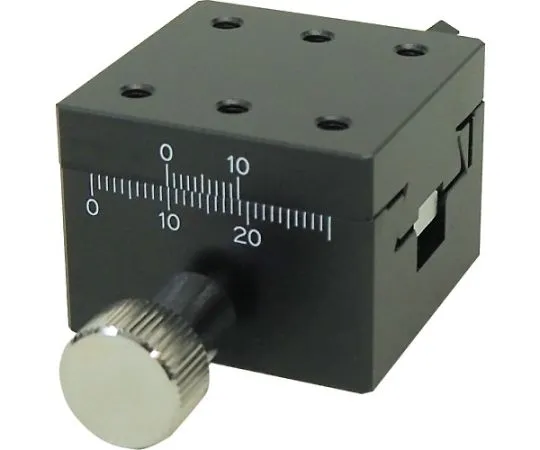

64-8664-11 Rack And Pinion Stage RPX40
Product Description
Product Model: 64-8664-11Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8664-11
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- This is a moving unit using an ant groove as a moving guide.
- A rack pinion is ***d for the feed system, and a large amount of movement can be obtained.
- It can be widely ***d for positioning applications such as cameras and sensors.
- For positioning cameras, sensors, workpieces, etc.
- Base plate sold separately.
Spec
- Type: X Stage
- Stage surface (mm): 40 x 40
- Displacement (mm): +/- 10
- Straightness (μm): 30
- Parallelism with movement (μm): 30
- Horizontal load capacity (N): 39.2
- Clamp Method: Screw Type
- Operation Part Mounting Position: Single Handle
- Movable Mechanism/Feed Method: Rack and Pinion Type
- Shift/1 turn of knob: 18 mm
- Eye Diameter: 0.1 mm
- Sensitivity: 0.1 mm
- Travel Guide: Yes
- Material/Finish: Stage Body: Aluminum Alloy
- Country of origin: Japan
- Securities Code: 207 -6439
