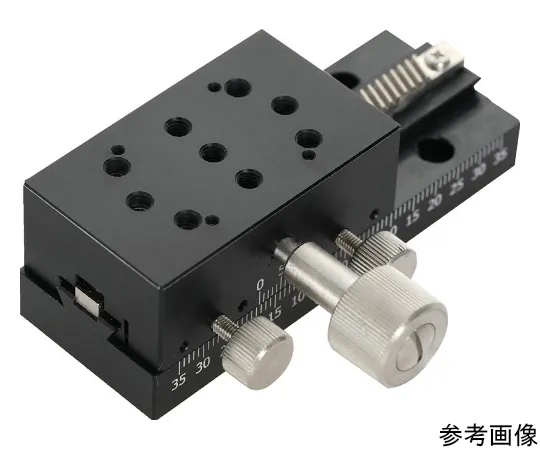

64-8505-40 Rack And Pinion Stage ERPXL30100
Product Description
Product Model: 64-8505-40Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8505-40
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- A rack pinion is ***d for the feed system, and a large amount of movement can be obtained.
- Long stroke rack pinion type stage.
- It can be widely ***d for positioning applications such as cameras and sensors.
- For positioning cameras, sensors, workpieces, etc.
Spec
- Type:
- X Stage
- rack pinion
- Width (mm): 100
- Depth (mm): 40
- Thickness (mm): 28
- Move Direction: X-axis Direction
- Stage surface (mm): 30 x 50
- Displacement (mm): +/- 40
- Straightness (μm): 50
- Parallelism with movement (μm): 50
- Horizontal load capacity (N): 29.4
- Vertical load capacity (N): 14.7
- Clamp Method: Screw Type
- Operating part mounting position: side
- Movable Mechanism/Feed Method: Rack and Pinion Type
- moving guides: dovetail grooves
- Displacement: +/- 40 mm
- Shift/1 turn of knob: 16.7 mm
- Eye Diameter: 0.1 mm
- Movement accuracy: straightness 50 μm, movement parallelism 50 μm
- Material/Finish: Table: Aluminum Alloy, Table Surface Treatment: Black Alumite
- Country of origin: Taiwan
- Securities Code: 208 -1089
