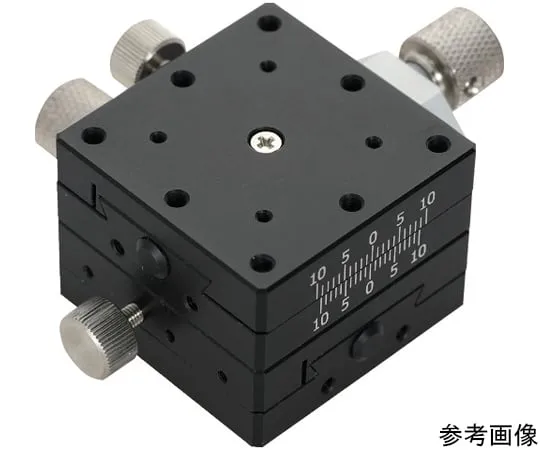

Spec

• Type:
• XY Stage
• feed screw
• Width (mm): 60
• Depth (mm): 60
• Thickness (mm): 34
• Move Direction: XY Axis 2 Direction
• Stage surface (mm): 60 x 60
• Displacement (mm): +/- 7
• Straightness (μm): 50
• Parallelism with movement (μm): 50
• Horizontal load capacity (N): 33.3
• Clamp Method: Screw Type
• Operating part mounting position: side
• feed method: feed screws
• moving guides: dovetail grooves
• Displacement: +/- 7 mm
• Shift/1 turn of knob: 0.5 mm
• Eye Diameter: 0.5 mm
• Movement accuracy: straightness 50 μm, movement parallelism 50 μm
• Material/Finish: Table: Aluminum Alloy, Table Surface Treatment: Black Alumite
• Country of origin: Taiwan
• Securities Code: 208 -2568
