Analyzer, Testing Equipment

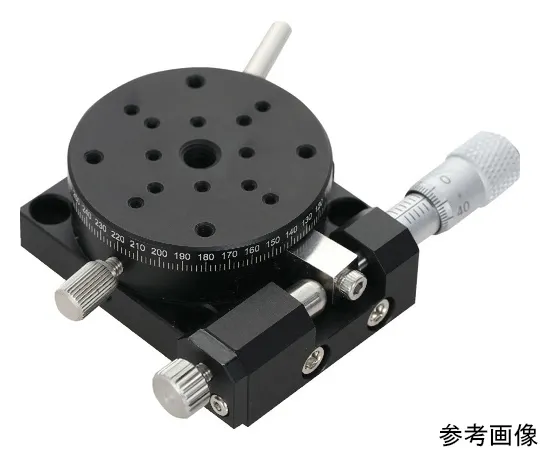

64-8499-63 Guide-Brass Rotation Stage EGBR60
Product Description
Product Model: 64-8499-63Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8499-63
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- A rotary stage that can be finely adjusted using a micrometer head after a large angle adjustment.
- It can be widely ***d for positioning applications such as cameras and sensors.
- For positioning cameras, sensors, workpieces, etc.
Spec
- Type:
- rotating stage
- Width (mm): 73
- Depth (mm): 71
- Thickness (mm): 20
- Direction of Movement: Rotate 360 °
- Stage Surface (mm): φ 60
- Shift: 360 °
- Horizontal load capacity (N): 29.4
- Clamp Type: Opposing Clamp Type
- Operating part mounting position: side
- Moving Mechanism/Feed System: Micrometer Head Type
- travel guides: aligning
- Movement Amount: Coarse Movement 360 °, Fine Movement ± 5 ° (Micrometer Head)
- Amount: 1 °
- Material/Finish: Table: Aluminum Alloy, Table Surface Treatment: Black Alumite
- Country of origin: Taiwan
- Securities Code: 208 -1093
