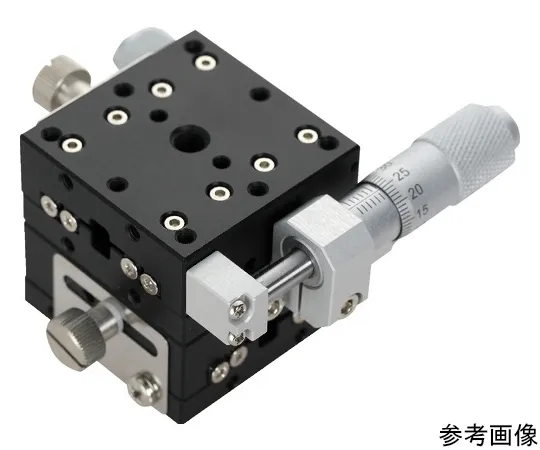

64-8498-75 Crossed Roller Stage ECRXY40
Product Description
Product Model: 64-8498-75Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8498-75
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- The stage can be adjusted in 0.01 mm increments using a micrometer head.
- It is widely available for precision positioning applications such as cameras, sensors, and workpieces.
- For precise positioning of cameras, sensors, workpieces, etc.
Spec
- Type:
- XY Stage
- cross roller
- Width (mm): 70
- Depth (mm): 66
- Thickness (mm): 40
- Move Direction: XY Axis 2 Direction
- Stage surface (mm): 40 x 40
- Displacement (mm): +/- 6.5
- Straightness (μm): 30
- Parallelism with movement (μm): 60
- Horizontal load capacity (N): 17.6
- Clamp Method: Screw Type
- Operating part mounting position: side
- Feed Method: Micrometer Head
- travel guides: cross rollers
- Displacement: +/- 6.5 mm
- Shift/1 turn of knob: 0.5 mm
- Mesh Amount: Micrometer Type 0.01 mm
- Movement accuracy: straightness 30 μm, movement parallelism 60 μm
- Material/Finish: Table: Aluminum Alloy, Table Surface Treatment: Black Alumite
- Country of origin: Taiwan
- Securities Code: 207 -9748
