Analyzer, Testing Equipment

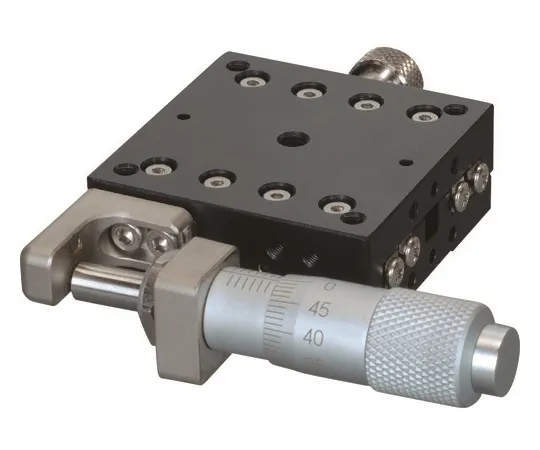

64-8470-59 Cross Stage CRXS4040
Product Description
Product Model: 64-8470-59Product Brand: TRUSCO NAKAYAMA […]
Contact Us
Product Details
Product Model: 64-8470-59
Product Brand: TRUSCO NAKAYAMA CORPORATION
Features
- Adopting aluminum alloy as the main material, this stage is both rigid and lightweight.
- It is widely available for precision positioning applications such as cameras, sensors, and workpieces.
- For precise positioning of cameras, sensors, workpieces, etc.
Spec
- Type: X Stage
- Width (mm): 63.5
- Depth (mm): 69.8
- Thickness (mm): 16
- Stage surface (mm): 40 x 40
- Displacement (mm): +/- 6.5
- Straightness (μm): 2
- Parallelism with movement (μm): 10
- Horizontal load capacity (N): 39.2
- Vertical load capacity (N): -
- Clamp Method: Plate Clamp
- Operating part mounting position: side
- feed method: standard micrometer
- Shift/1 turn of knob: 0.5 mm
- Mesh Amount: Micrometer Type 0.01 mm
- Sensitivity: 0.003 mm
- travel guides: V-grooves and cross-rollers
- Material/Finish: Main Material: Aluminum Alloy, Surface Treatment: Black Alumite Crepe
- Country of origin: Japan
- Securities Code: 207 -5214
