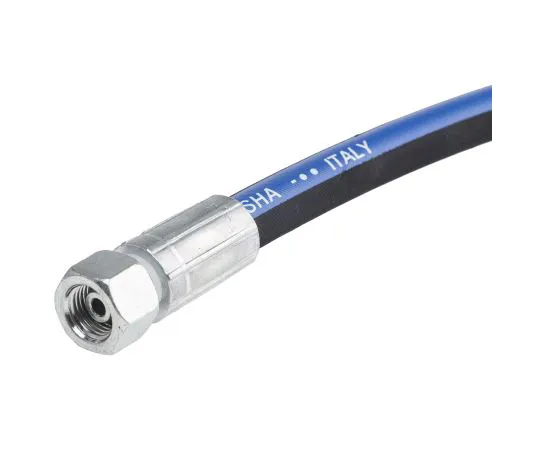

63-6762-46 1162mm Synthetic Rubber Hydraulic Hose Assembly, 400bar Max Pressure 110-1994

model: 63-6762-46
brand: RS PRO

Product Description

Product Model: 63-6762-46Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6762-46
Product Brand: RS PRO

Features

  • Flexible hose assembly allows liquid transport at high pressure. Pay special attention to the application, material, and product specifications.
  • These assemblies are not suitable for *** with our company high-pressure hydraulic cylinders and pump series with an operating pressure of 700 bar. These assemblies are not eligible for our company's BS 5750 Part 2 stocklist for Assessment Capacity Level B registration. Anti-puncture cover for air or gas applications exceeding 17 bar (250 psi).
  • Straight Hydraulic Hose Assembly
  • High-quality flexible hydraulic hose with crimping *** attachment. Each assembly includes an integrated *** fixture (to prevent misalignment of inserts and sleeves) and a matching hose. This hose is a synthetic rubber tube with a synthetic rubber outer cover and high tensile steel wire reinforcement. The fittings are made of galvanized mild steel.
  • Applications: Applications include petroleum-based hydraulic fluids, mineral oils, lubricants, water-glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude oil, fuel oil, air, and medium pressure water.

Spec

  • Overall Length:1162mm
  • Inside Diameter:1/4in
  • Connector A:Straight G 1/4 Female
  • Connector B:Straight G 1/4 Female
  • Inner Hose Material:Synthetic Rubber
  • Reinforcing Material:Steel
  • Cover Material:Synthetic Rubber
  • Maximum Operating Pressure:400bar
  • Connector B - Thread Standard:G
  • Connector A - Angle:Straight
  • Connector B - Thread Size:1/4in
  • Connector A - Thread Standard:G
  • Connector B - G***er:Female
  • Connector A - Thread Size:1/4in
  • CODE No.:110-1994
