Features

• Part number DF11CZ-xxxx-xx (27) DF11 2 mm SMT pin header connector with tin plated contact Part number DF11C-xxxx-xx (57) DF11 2 mm SMT pin header connector with gold plated contact

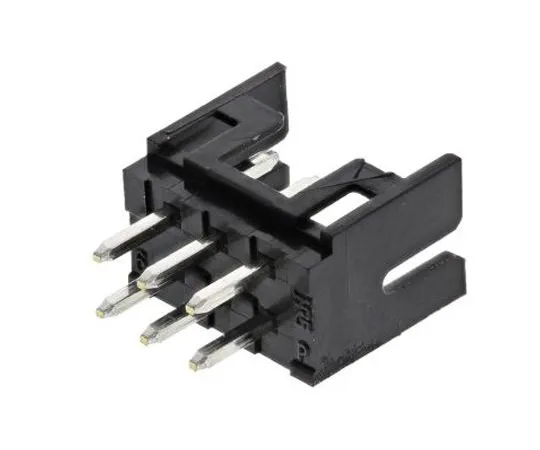

• Hirose Denki DF11 Series 2.00 mm PCB Header Connector
• The DF11 Series 2.00 mm PCB header connector has a compact 2 row design with a depth of less than 5 mm.　The space-saving design allows you to *** two rows of contacts in the same space as a single-row connector.　The DF11 series board header is designed with a durable 4 sided shroud and includes guide ribs to prevent misinsertion and twisting during engagement.　The locking mechanism ensures that the header is firmly engaged with the connector housing, and the mounting hardware on the surface mount increases retention on the board and prevents solder peeling.　The DF11 Series 2.00 mm board header, available in through-hole and surface-mounted versions, engages the DF11 Series connector housing for wire-to-board applications and the DF11 board socket for board-to-board applications.
• Features & Advantages: Compact, space-saving design Only 5 mm depth allows *** of two-row contact configurations in the same space as one-row connectors Guide rib lock mechanism to prevent mis-engagement Secure engagement tool to firmly hold substrate Suitable for both wire-to-substrate and substrate-to-substrate applications
• information on product ***
• The DF11 Series 2.00 mm board header connector is ideal for applications and portable devices that require both space saving and multiple signals. Its main applications include digital cameras, LDC displays, digital video recorders, car navigation systems, access control units, and measurement devices.
