Features

• Part number DF11CZ-xxxx-xx (22) DF11 2 mm SMT receptacle connector with tin plated contact Part number DF11CZ-xxxx-xx (52) DF11 2 mm SMT pin header connector with gold plated contact

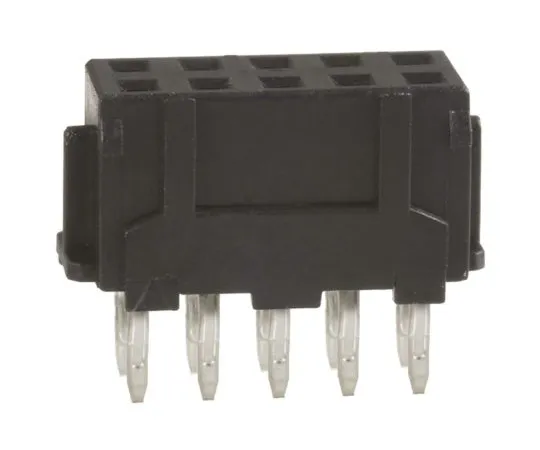

• Hirose Denki DF11 Series 2.00 mm Board Socket Connector
• The DF11 Series 2.00 mm PCB Socket Connector is a compact 2 row design with a depth of less than 5 mm.　The space-saving design allows you to *** two rows of contacts in the same space as a single-row connector.　The housing of the DF11 series board socket is equipped with guide ribs to prevent misinsertion and twisting during engagement.　The surface-mounted mounting bracket increases the holding force on the substrate and prevents solder peeling.　The DF11 Series 2.00 mm board socket, available in through-hole and surface-mounted versions, mates with the DF11 Series board header for *** in board to board applications.
• Features & Advantages: Compact, space-saving design With only 5 mm depth, 2-row contact configuration can be ***d in the same space as 1-row connector Guide ribs to prevent mis-engagement Stir alloy tool to firmly hold substrate Suitable for substrate to substrate applications
• Applications: Portable devices requiring multiple signals with space-saving footprints Digital cameras LCD displays Digital video recorders Car navigation access control units Measuring devices
