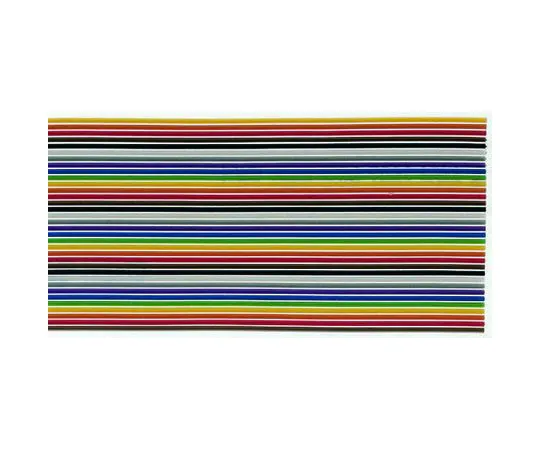

63-6755-25 FPC/FFC cable 64 wires Total length: 30 m 3302-64
Electronic/Electrical Parts and Controll Equipments

63-6755-25 FPC/FFC cable 64 wires Total length: 30 m 3302-64

model: 63-6755-25
brand: 3M Company

Product Description

Product Model: 63-6755-25Product Brand: 3M Company Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6755-25
Product Brand: 3M Company

Features

  • These cables are not int***ed as power cables or cables for direct connection to the equipment's main power source.
  • 0.05 "(1.27 mm) Pitch Ribbon Cable - Type 3302
  • 3302 Series 10 Colors Repeatedly Clear Carrier Identification Color Ribbon Cable (28 awg wire with 0.05" center-to-center distance) allows many terminations of various 3M IDC connectors The strand is flexible and ext***s product life. Insulation resistance is > x 10 9 Ω/3 m
  • Connector and cable compatibility
  • This cable is especially suitable for 3M dedicated IDC connector products Part number < 323-7845') 323-7845/and < 121-0040') 121-0040/are common as 3M connector products

Spec

  • Quantity: 1 reel (30 meters)
  • Number of poles: 64
  • Pitch: 1.27 mm
  • AWG American Wire Gauge Standard: 28
  • Reel length: 30 m
  • Width: 81.28 mm
  • Cable shape: ribbon
  • Sheath Color: Multicolor
  • Allowable Voltage: 300 V
  • Shielded/unshielded: unshielded
  • Conductor Strand Type: Standard
  • Number of strands: 7
  • Operating temperature Min: -20 degrees C
  • Operating temperature Max: + 105 degrees C
  • Characteristic Impedance: 105 ohms
  • RoHS compliance status: Compliance
  • Securities Code: 105 -5360
