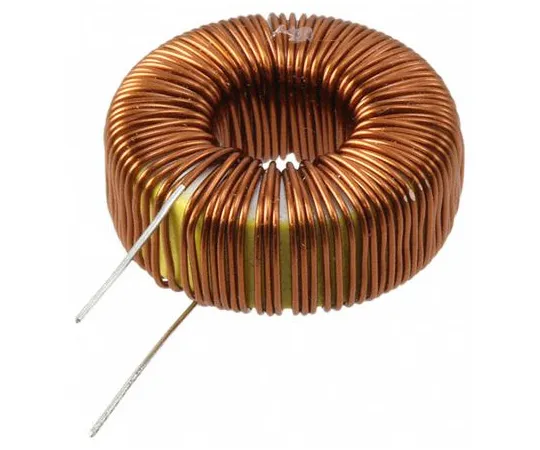

63-6754-01 RS PRO 470 μH ±15% Power Inductor, 500mA Idc, 0.322mΩ Rdc 104-8426
Product Description
Product Model: 63-6754-01Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6754-01
Product Brand: RS PRO
Features
- ISO-9001:2000 S-16949:2002 ISO-14001:2004 RS Pro toroidal power inductor, 22 → 1000 uf The RS Pro toroidal power inductor can be ***d for EMI filtering and energy storage. Compact design, effective in controlling AC output ripple of switch mode power supply. Various combinations of inductance values and current ratings are available.
- Features • Low-cost 0 radiation design High-temperature soldering, easy to attach to substrate with pin-on leads Operating frequency: Up to 100 kHz RoHS
Spec
- Inductance:470 μH
- Maximum DC Current:500mA
- Mounting Type:Radial
- Maximum DC Resistance:0.322mΩ
- Tolerance:±15%
- Diameter:20mm
- Height:9mm
- Dimensions:20 (Dia.) x 9mm
- Series:DP
- Minimum Operating Temperature:-40°C
- CODE No.:104-8426
