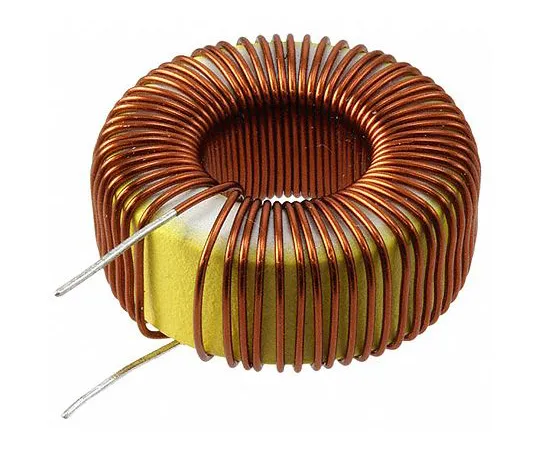

63-6753-98 RS PRO 47 μH ±15% Power Inductor, 2A Idc, 0.09mΩ Rdc 104-8423
Product Description
Product Model: 63-6753-98Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6753-98
Product Brand: RS PRO
Features
- ISO-9001:2000 S-16949:2002 ISO-14001:2004 RS Pro toroidal power inductor, 22 → 1000 uf The RS Pro toroidal power inductor can be ***d for EMI filtering and energy storage. Compact design, effective in controlling AC output ripple of switch mode power supply. Various combinations of inductance values and current ratings are available.
- Features • Low-cost 0 radiation design High-temperature soldering, easy to attach to substrate with pin-on leads Operating frequency: Up to 100 kHz RoHS
Spec
- Inductance:47 μH
- Maximum DC Current:2A
- Mounting Type:Radial
- Maximum DC Resistance:0.09mΩ
- Tolerance:±15%
- Diameter:15mm
- Height:8mm
- Dimensions:15 (Dia.) x 8mm
- Series:DP
- Maximum Operating Temperature:+125°C
- CODE No.:104-8423
