63-6753-92 RS PRO 33 μH ±15% Power Inductor, 1A Idc, 0.052mΩ Rdc 104-8417
Product Description
Product Model: 63-6753-92Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6753-92
Product Brand: RS PRO
Features

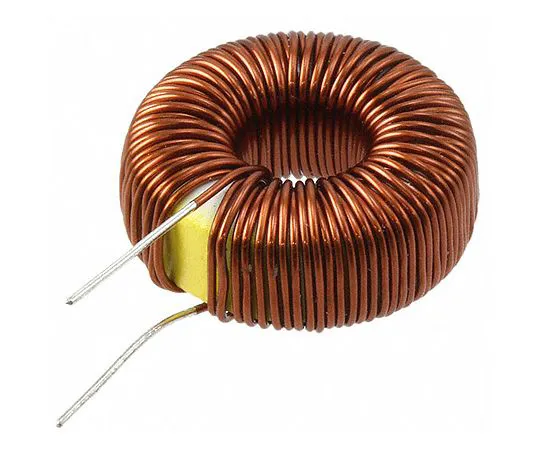

- ISO-9001:2000 S-16949:2002 ISO-14001:2004 RS Pro toroidal power inductor, 22 → 1000 uf The RS Pro toroidal power inductor can be ***d for EMI filtering and energy storage. Compact design, effective in controlling AC output ripple of switch mode power supply. Various combinations of inductance values and current ratings are available.
- Features • Low-cost 0 radiation design High-temperature soldering, easy to attach to substrate with pin-on leads Operating frequency: Up to 100 kHz RoHS
Spec
- Inductance:33 μH
- Maximum DC Current:1A
- Mounting Type:Radial
- Maximum DC Resistance:0.052mΩ
- Tolerance:±15%
- Diameter:14mm
- Height:8mm
- Dimensions:14 (Dia.) x 8mm
- Series:DP
- Lead Diameter:0.5mm
- CODE No.:104-8417
