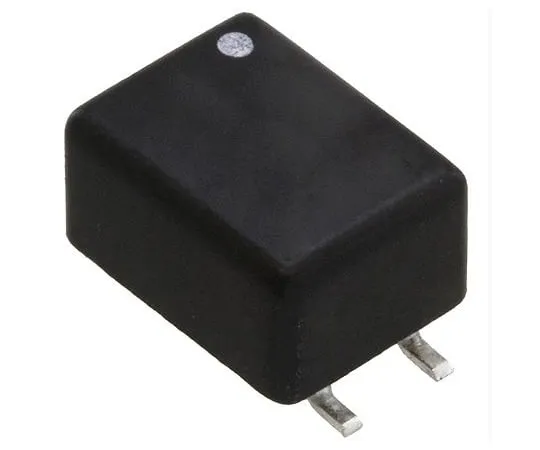

63-6753-80 RS PRO 4.7 mH 200 mA Common Mode Choke 840mΩ 104-8404
Product Description
Product Model: 63-6753-80Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6753-80
Product Brand: RS PRO
Features
- ISO-9001 • RS Pro Common Mode Choke (0.20-0.70 uh) • RS Pro Common Mode Choke is a miniature SMD choke ideal for pick-and-place compactness. Coplanarity is also ensured. This common-mode choke is available in a variety of inductance value types and provides high attenuation performance over a wide frequency range.
- Features Rated operating temperature range at 25 °C: 0 to 70 °C
Spec
- Inductance:4.7 mH
- Series:CMJ
- DC Resistance:840mΩ
- Maximum Current:200 mA
- Dimensions:7.6 x 5.8 x 4.3mm
- Operating Temperature Range:0°C → +70°C
- Number of Lines:2
- Mounting Type:Surface Mount
- Termination Style:Solder Pad
- Length:7.6mm
- CODE No.:104-8404
