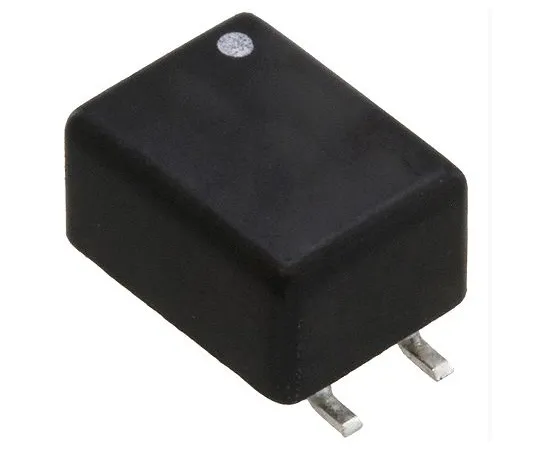

63-6753-78 RS PRO 2.2 mH 400 mA Common Mode Choke 450mΩ 104-8402
Product Description
Product Model: 63-6753-78Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6753-78
Product Brand: RS PRO
Features
- ISO-9001 • RS Pro Common Mode Choke (0.20-0.70 uh) • RS Pro Common Mode Choke is a miniature SMD choke ideal for pick-and-place compactness. Coplanarity is also ensured. This common-mode choke is available in a variety of inductance value types and provides high attenuation performance over a wide frequency range.
- Features Rated operating temperature range at 25 °C: 0 to 70 °C
Spec
- Inductance:2.2 mH
- Series:CMJ
- DC Resistance:450mΩ
- Maximum Current:400 mA
- Dimensions:7.6 x 5.8 x 4.3mm
- Operating Temperature Range:0°C → +70°C
- Number of Lines:2
- Mounting Type:Surface Mount
- Termination Style:Solder Pad
- Length:7.6mm
- CODE No.:104-8402
