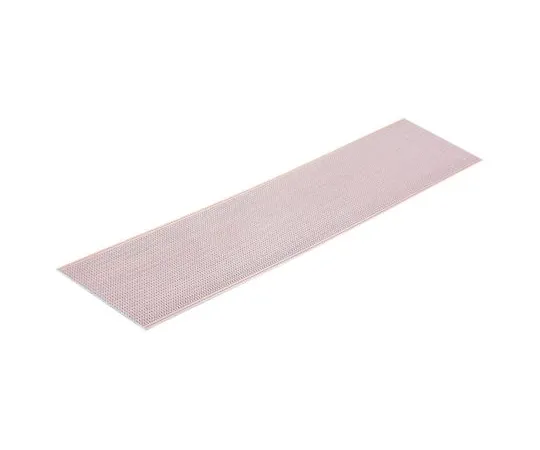

63-6739-23 Single-Sided Stripboard Epoxy Glass 454.66 x 95.1 x 1.6mm FR4 100-4110
Product Description
Product Model: 63-6739-23Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6739-23
Product Brand: RS PRO
Features
- Single-Sided VeroboardR Board
- The Veroboard is ideal for development and prototyping, and is int***ed primarily for low-profile components, especially analog circuits. It is also ***ful when there are many bus or common signals. The basic principle of Veroboard requires the placement of components and therefore electrical connections to predetermined copper tracks. If you are cutting along this track, *** the cutter (part number; 543-535 543-535) or drill holes. This set of plugs can be ***d with Veroboard.
Spec
- Base Material:Epoxy Glass Fabric Laminate
- Number of Sides:1
- Dimensions:454.66 x 95.1 x 1.6mm
- Copper Thickness:35µm
- Hole Diameter:1.02mm
- Hole Layout:34 x 179
- Hole Pitch:2.54 x 2.54mm
- FR Material Grade:FR4
- Length:454.66mm
- Thickness:1.6mm
- Width:95.1mm
- CODE No.:100-4110
