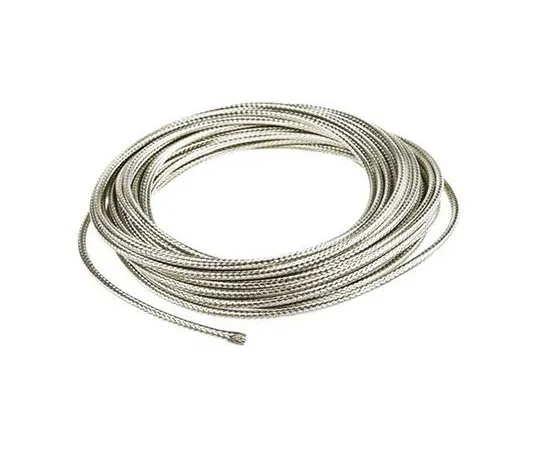

63-6738-96 Cable Shield Silver Length: 100 m RAY-101-3.0100
model:
63-6738-96
brand:
TE Connectivity
Product Description
Product Model: 63-6738-96Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6738-96
Product Brand: TE Connectivity
Features
- Raybraid Plated Copper Blade
- Sleeve blade for electrically shielding wire bundles and protecting them from interference. The Raybraid is provided with a tube-shaped winding, making it easier to assemble and stronger than a flat blade. Ray-101 is a tin plated copper shield and Ray-103 is a nickel plated copper shield. These products are suitable for *** in harsh or hot environments.
- Features and Benefits; EMC screens for wires and cables; Easy to remove from PVC winding; Minimum 93%, maximum 100% optical coverage; High effective stretch ratio (minimum 2:1); Prepare tin plated copper or nickel plated copper sleeves.; Supports a wide range of sizes from 2.5 mm to 40 mm in diameter
Spec
- Quantity: 1 reel (100 meters)
- Sleeve diameter: 3 mm
- Color: Silver
- Material: Copper
- Sleeve length: 100 m
- Knitting: Yes
- Easy to pull: Yes
- Minimum cable diameter: 2.5 mm
- Maximum cable diameter: 5 mm
- Operating temperature Min: -65 degrees C
- Operating temperature Max: 150 deg.
- Shields: Yes
- Series: RayBraid
- RoHS compliance status: Compliance
- Securities Code: 100 -3914
