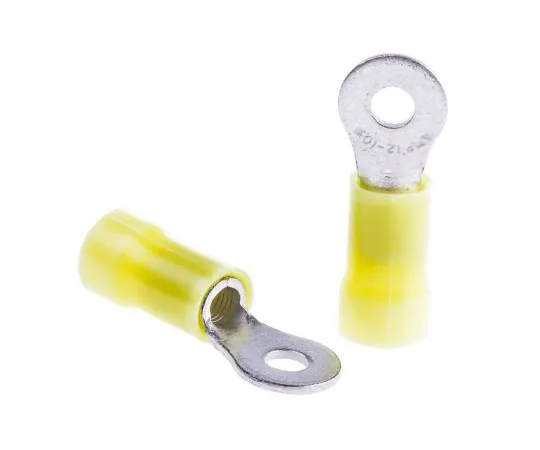

63-6735-67 Insulated Round Crimp Terminal Plastic Grip Stud Diameter: M 3.5 Yellow 12 AWG to 10 AWG 342182-1
model:
63-6735-67
brand:
TE Connectivity
Product Description
Product Model: 63-6735-67Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6735-67
Product Brand: TE Connectivity
Features
- TE Connectivity PLASTI-GRIP Ring-Tongue Wire Crimp Terminal
- The PLASTI-GRIP closed barrel ring-tongue wire crimp terminal is made of highly conductive copper and is tin plated. Has 94V-0 grade vinyl insulation expansion sleeves with high insulation resistance. The inner surface of the barrel of this PLASTI-GRIP closed barrel ring tongue crimping terminal is saw-toothed to maximize electrical contact and extension strength after crimping. Funnel entries into the wire barrel so you can easily insert strip lines.
- Red, 0.25 → 1.6 mm2 Blue, 1.0 → 2.6 mm2 Yellow, 2.7 → 6.6 mm2
Spec
- Quantity: 1 bag (100 pieces)
- Series: PLASTI-GRIP
- Insulation: Insulation
- Insulation: Vinyl
- Outer ring diameter: 9.5 mm
- Minimum wire size mm2: 3 mm2
- Minimum wire size AWG: 12 AWG
- Stud Size: M 3.5
- Color: Yellow
- Contact Plating: Tin
- Thickness: 0.81 mm
- Total length: 28.02 mm
- RoHS compliance status: Compliance
- Securities Code: 842 -163
Related product recommendations
You may also be interested in the following products
63-5010-44 Murata 330 μH ±10% Leaded Inductor, 1.34A Idc, 240mΩ Rdc 1900R 19R334C
model: 63-5010-44
brand: Murata Power Solutions

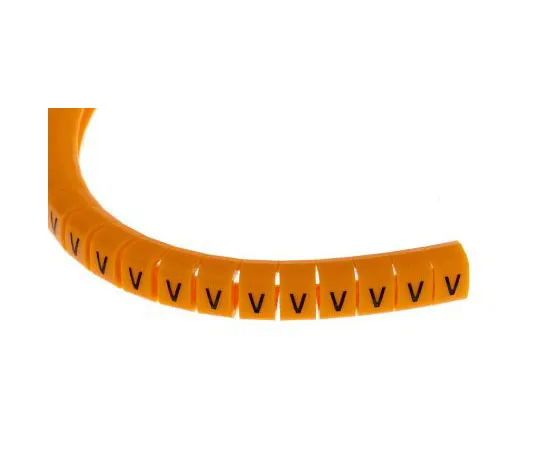

63-8016-68 RS Pro Snap On Cable Marker, Pre-printed V Black on Orange 4 → 5mm Dia. Range 812-1495
