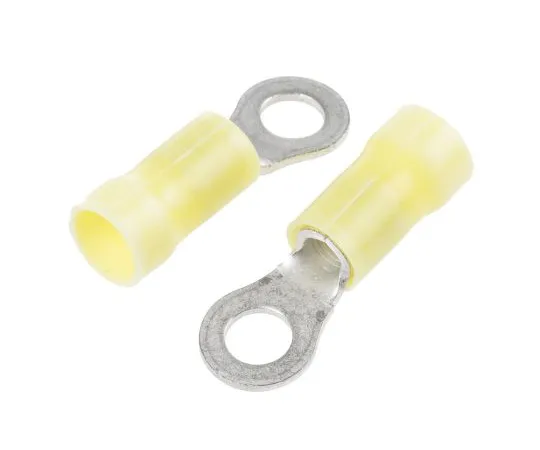

63-6735-65 Insulated Round Crimp Terminal Plastic Grip Inner Diameter: 5 mm Stud Diameter: M5 Yellow 12 AWG 160292
model:
63-6735-65
brand:
TE Connectivity
Product Description
Product Model: 63-6735-65Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6735-65
Product Brand: TE Connectivity
Features
- TE Connectivity PLASTI-GRIP Ring-Tongue Wire Crimp Terminal
- The PLASTI-GRIP closed barrel ring-tongue wire crimp terminal is made of highly conductive copper and is tin plated. Has 94V-0 grade vinyl insulation expansion sleeves with high insulation resistance. The inner surface of the barrel of this PLASTI-GRIP closed barrel ring tongue crimping terminal is saw-toothed to maximize electrical contact and extension strength after crimping. Funnel entries into the wire barrel so you can easily insert strip lines.
- Red, 0.25 → 1.6 mm2 Blue, 1.0 → 2.6 mm2 Yellow, 2.7 → 6.6 mm2
Spec
- Quantity: 1 bag (100 pieces)
- Series: PLASTI-GRIP
- Insulation: Insulation
- Insulation: PVC
- Inner ring diameter: 5 mm
- Minimum wire size mm2: 2.6 mm2
- Minimum wire size AWG: 12 AWG
- Stud Size: M5
- Color: Yellow
- Contact Plating: Tin
- Total length: 27.9 mm
- RoHS compliance status: Compliance
- Securities Code: 842 -141
