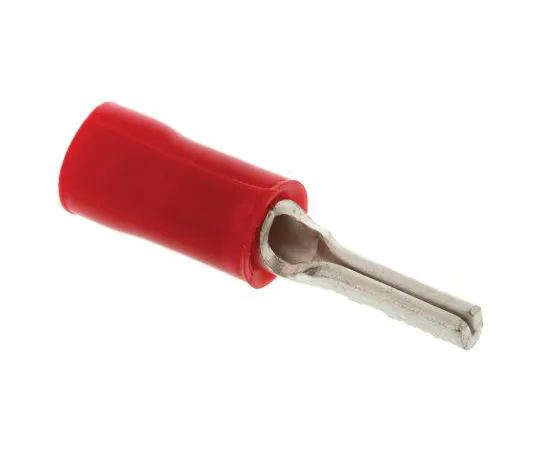

63-6735-58 Crimping pin terminal PLASTI-GRIP series Tin-plated 16 AWG 1.6 mm 2 22 AWG 0.25 mm 2 165143
model:
63-6735-58
brand:
TE Connectivity
Product Description
Product Model: 63-6735-58Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6735-58
Product Brand: TE Connectivity
Features
- Not suitable for *** with double wires
- TE Connectivity PLASTI-GRIP wire pin crimping terminal
- The PLASTI-GRIP wire pin terminal is made of highly conductive copper and has tin plating. Has 94V-0 grade vinyl insulation expansion sleeves with high insulation resistance. The inner surface of the barrel of the PLASTI-GRIP wire pin terminal is serrated to maximize electrical contact and extension strength after crimping. Funnel entries into the wire barrel so you can easily insert strip lines.
- Red, 0.25 → 1.6 mm2 Blue, 1.0 → 2.6 mm2 Yellow, 2.7 → 6.6 mm2
Spec
- Quantity: 1 bag (100 pieces)
- Series: PLASTI-GRIP
- Insulation: Insulation
- Insulation: Nylon
- Minimum wire size mm2: 0.25 mm2
- Maximum wire size mm2: 1.6 mm2
- Minimum wire size AWG: 22 AWG
- Shroud/Unshroud: Unshroud
- Pin diameter: 1.8 mm
- Pin length: 6.8 mm
- Color: Red
- Contact Plating: Tin
- Contact Material: Copper
- RoHS compliance status: Compliance
- Securities Code: 842 - 028
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
64-1249-93 Lovato Platinum Series, Green, Red Push Button Head, Spring Return, 22.3mm Cutout LPCB7355
model: 64-1249-93
brand: Lovato
Electronic/Electrical Parts and Controll Equipments

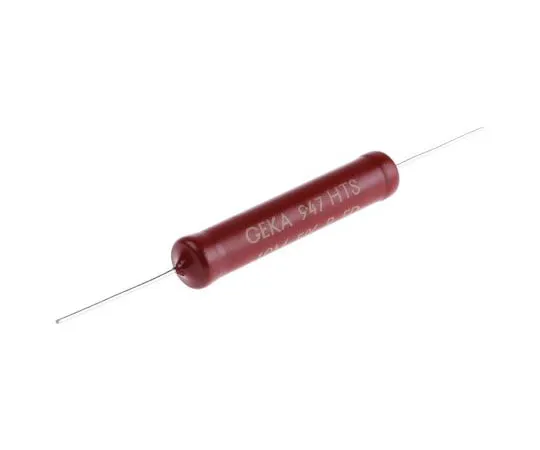

63-7983-41 Vishay 10MΩ 3W Fixed Resistor ±5% ±150ppm/°C HTS09471005JPB19
