Analyzer, Testing Equipment

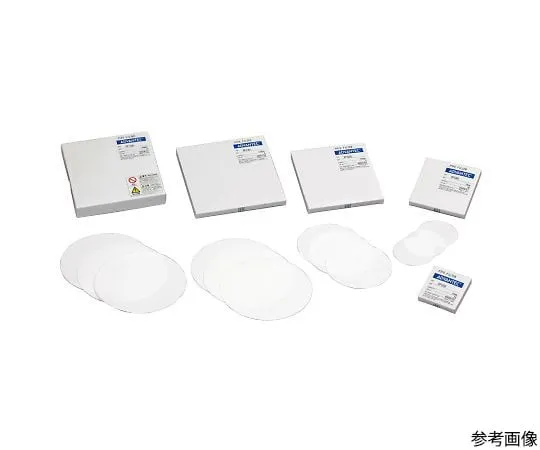

64-1192-70 PTFE Filter Paper PF-040 110mm 5 pcs 38401110
Product Description
Product Model: 64-1192-70Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1192-70
Product Brand: ADVANTEC
Features
- It can be ***d continuously and stably in the temperature range of -120 to 260°C. Autoclave sterilization, dry heat sterilization and ethylene oxide gas sterilization are also possible.
- It has excellent chemical resistance that is not affected by acids, alkalis, oxidants, organic solvents, etc., and can be ***d for most chemicals other than special chemicals such as fluorine gas, chlorine trifluoride, and molten alkali metals at high temperatures and pressures.
- Due to its hydrophobic nature (repelling water), it is not easily affected by humidity in gas filtration, and there is little adsorption of acidic gases.
- Since the filter is specially treated at the time of manufacturing, there are almost no fibers leaving the filter.
- After filtration, the filter can be washed with chemicals for repeated ***.
- Beca*** of its low friction coefficient and other characteristics such as electrical properties, non-adhesion, and mold release, the residue on the filter after filtration can be recovered more easily than cellulose filter paper.
Spec
- Dimensions ( mm ) : 110
- Mass (g/m ^ 2): 500
- Thickness (mm): 0.95
- Porosity (%): 75
- Pressure drop (kPa): 0.21
- Collection efficiency (0.3 μm DOP%): 95.0
- Retained particle size (μm): 4
- Water repellency (kPa): > 4.9
- *Pressure drop ・・・ value at a ventilation rate of 5 cm/s.
- *Collection Efficiency ・・・ 0.3 Collection efficiency when air containing dispersed dioctyl μm phthalate particles is filtered through an aeration rate of 5 cm/s.
- *Retained particle size ・・・ Standard particles in methyl alcohol, determined by capture particle size when filtered at a filtration rate of 1.0 kL/h m ^ 2.
- *Water Repellency ・・・ Pressure required for water to pass through.
