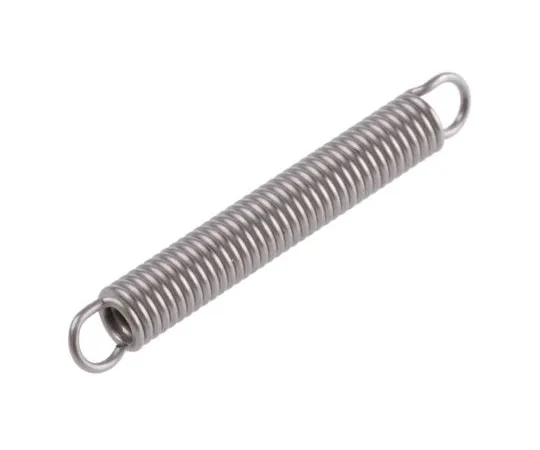

63-6732-17 RS PRO Stainless Steel Extension Spring, 26.40mm x 3.5mm 821-469
Product Description
Product Model: 63-6732-17Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6732-17
Product Brand: RS PRO
Features
- All right-handed helical spring dimensions of materials conforming to DIN 17224 No
- 1 4310 or BS2056 EN58A conform to DIN2097 (grade 2)
- Stainless steel tensile springs
- Tensile springs are mounted in a shrunk state using components at both ***s of the spring. Pull both ***s of the tension spring to restore it. The spring tension can match the load requirements of the int***ed application.
- Features and Advantages: Energy absorption and storage Resistance to tensile force Various sizes of winding spring resisting elongation
- Application:
- Interior and exterior garage door assembly Vise plier trampoline cleaning equipment Agricultural machinery
Spec
- Material:Stainless Steel
- Free Length:26.40mm
- Maximum Ext***ed Length:41.10mm
- Outside Diameter:3.5mm
- Wire Diameter:0.55mm
- Initial Tension:13.1N
- Spring Rate:0.75N/mm
- CODE No.:821-469
