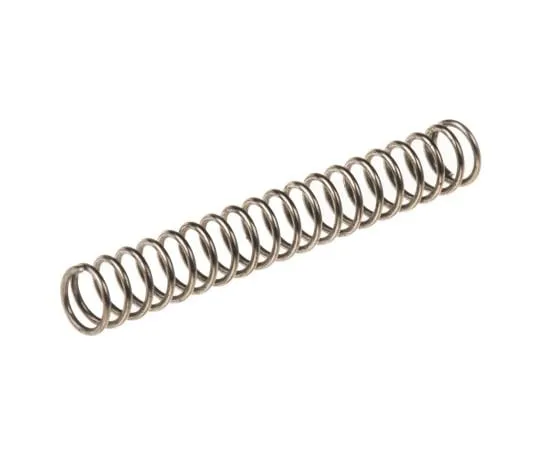

63-6732-16 RS PRO Stainless Steel Compression Spring, 20.6mm x 2.82mm, 0.32N/mm 821-267
Product Description
Product Model: 63-6732-16Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6732-16
Product Brand: RS PRO
Features
- Material conforms to DIN 17224 No. 1, 4310 or BS2056 EN58A. The load at the minimum operating length is the load required to compress the spring to its length. All dimensions and tension conform to DIN 2095 (Grade 2).
- Stainless Steel Compression Springs
- Termination is perp***icular to the length and unpolished appearance: Brown/Bronze right hand roll
Spec
- Outside Diameter:2.82mm
- Wire Diameter:0.32mm
- Free Length:20.6mm
- Minimum Working Length:8.5mm
- Load at Minimum Working Length:3.91N
- Material:Stainless Steel
- Spring Rate:0.32N/mm
- Ends:Closed (Square)/Unground
- CODE No.:821-267
